IBM PC300GL - General checkout (Type 6272 Models 88X, 89X, 90X,
91X Only)
Applicable to: World-Wide

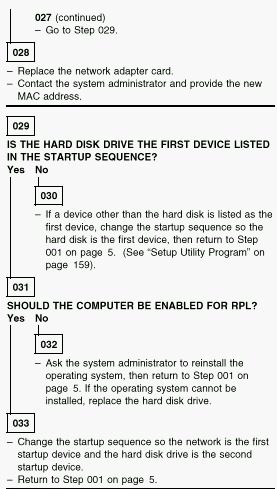

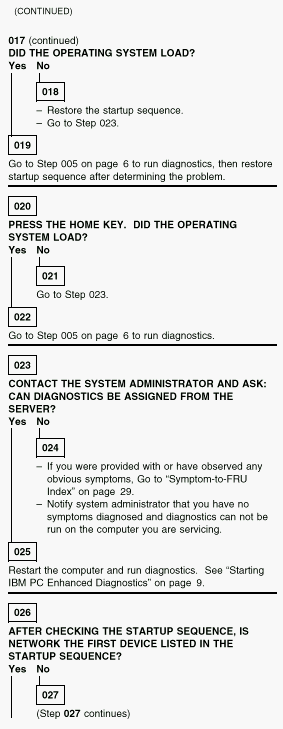

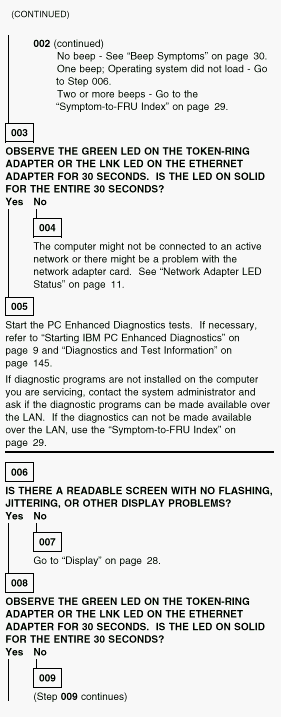

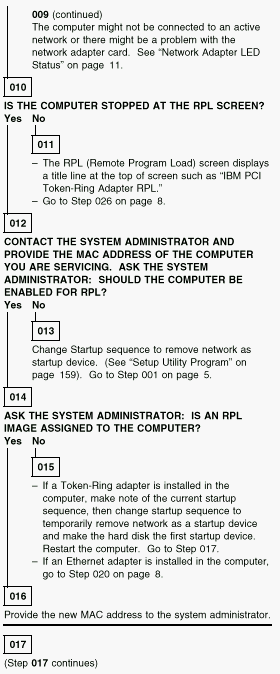

This general checkout and diagnostic procedure is for the Type 6272, Models 88X, 89X, 90X, 91X only. These models come without a diskette drive (disketteless) and without a CD-ROM.
Depending on the operating system and network configuration, the method of running diagnostics varies. It is the customer's responsibility to make the IBM PC Enhanced Diagnostics accessible from either: The local hard disk -- or -- The server.
If the computer you are servicing is set up to start remotely, this general checkout procedure assumes that the server providing services to the computer and the network are functioning correctly.
Note:
Run the IBM PC Enhanced Diagnostics under the DOS operating system. Windows 95 and Windows NT diagnostics should be run only if the DOS version is not available. For more information about the IBM PC Enhanced Diagnostics, see Diagnostics Test Programs on page 147 of the HMM.
