Service Hints & Tips |
Document ID: BMOE-3XVQSQ |
TP 380Z - 1070 Diskette Drive and CDROM Removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
Battery Pack (1020)
Keyboard Unit (1040)

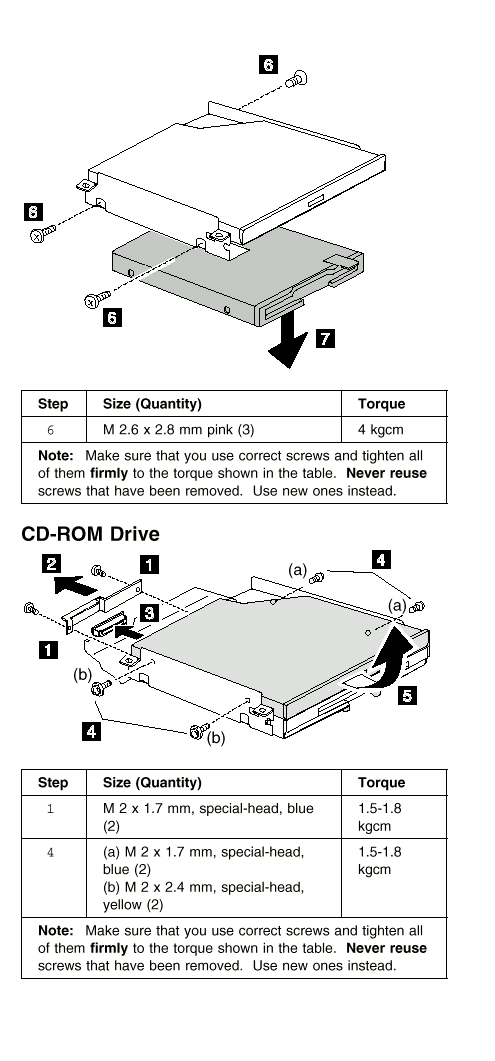

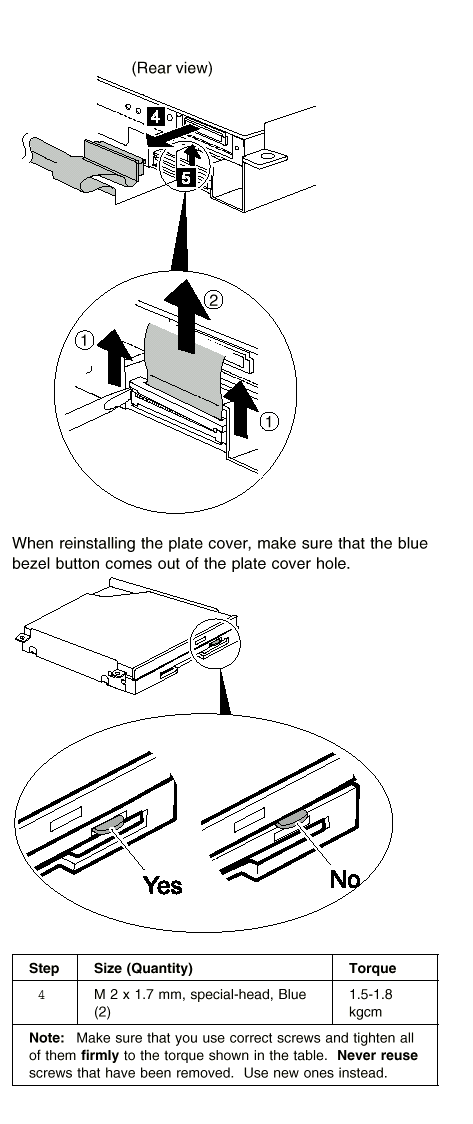

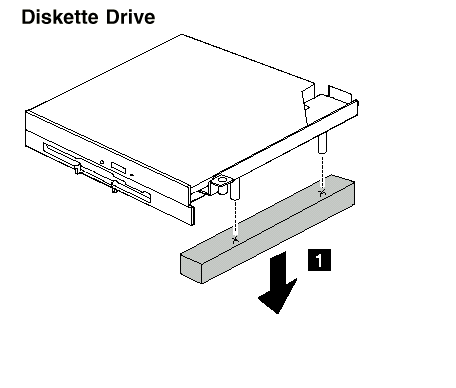

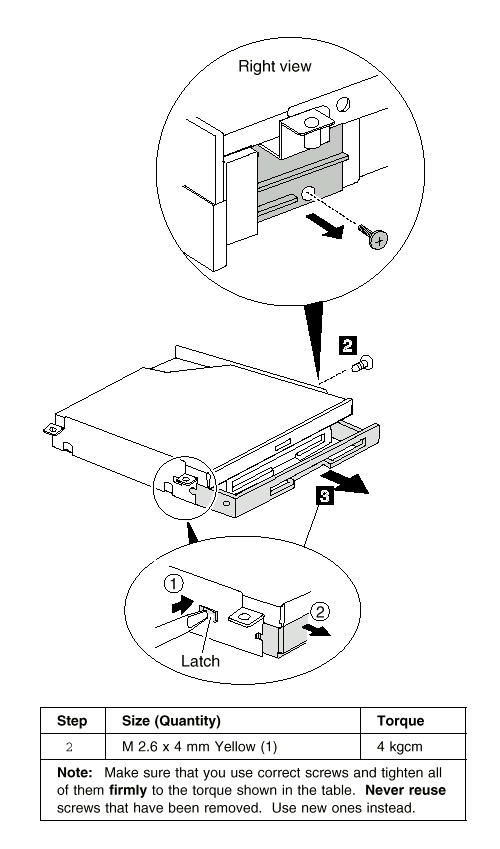

CD-ROM and Diskette Drive Assembly (1060)
Note: When replacing a screw, be sure to tighten the pink screws and yellow ones tightly.
|
