Server 95 - Type 9595A

73.151 bytes

Parts Information

Document ID: DDSE-3R5H6F

This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose.

Server 95 - Type 9595A

Applicable to: World-Wide

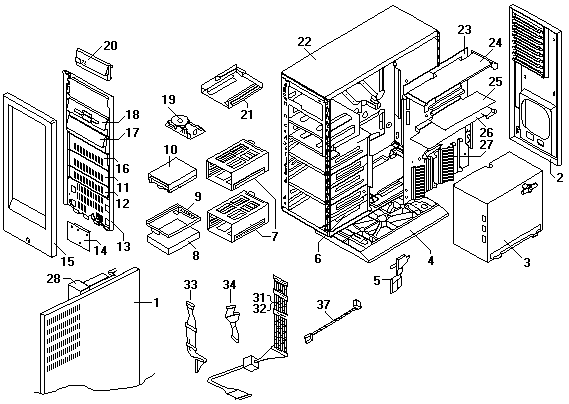

Service Information:

Index:

FRU P/N:

1

Access Cover

61G3533

2

Rear Bezel

61G3823

3

400 Watt Power Supply
Power Supply Ground Strap

92F0267
33F8418

4

Pedestal with Plate

33F8422

5

Tamper-Evident Switch/Cable Assy.

61G3518

6

Drive Support Structure

92F0280

7

Hot Plug Rack (3 bay)

61G3526

Hot Plug Rack (1 bay)

61G3527

Microswitch Housing
(for 61G3526, 61G3527)

61G3837

Microswitch Assembly
(for 61G3526, 61G3527)

71G4981

Microswitch Shaft
(for 61G3526, 61G3527)

61G3838

8

1GB 1/3 Ht. Hard Disk Drive (SCSI)

92F0428

Address Cable with tape
(for 92F0428)

61G3834

Blank Tray (for 92F0428)

61G3832

1GB 1/3 Ht. Hard Disk Drive (SCSI)
(with tray/cable)

61G3828

1GB Hard Disk Drive (SCSI)
(w/o tray/cable)

71G5040

68 Pin Fast/Wide Tray Asm.

06H7757

Address ID-Cable for 71G5040

71G0215

2-Feature Bezel

64F0168

5.25 Inch Diskette Drive Bezel

64F4103

5.25 Inch Framing Bezel

33F8459

CD-ROM Drive I and II Bezel

64F0138

Rewriteable Optical Drive Bezel

85F0018

2.88MB 3.5 Inch Diskette Drive
(with slide)

64F0204

Diskette Drive Cable (for 64F0204)

92F0283

Drive Slide (for 64F0204)

64F0156

2.88MB 3.5 Inch Diskette Drive
(with electr. eject.)

92F0129

Bezel (for 92F0129)

92F0130

540MB 1/3 Ht. Hard Disk Drive (SCSI)

92F0406

Address Cable with tape
(for 92F0406)

61G3833

540MB 1/3 Ht. Hard Disk Drive (SCSI)
(with tray/cable)

61G3525

2.0/4.0-GB 4 mm Tape Drive

FRU P/N

127MB / 230MB Rewriteable Optical Drive

FRU P/N

Internal CD-ROM-(I and II)

FRU P/N

9

Hot Plug Rack Rail
Hot Plug Adapter
Hot Plug Adapter Terminator

71G4982
61G3835
61G3836

10

2.88MB 3.5 Inch Diskette Drive
(with slide)

64F0204

11 - 16

DASD Bezel (medium)

64F4136

12

Feature Bezel (small)

33F8425

13

Drive Retainer

61G3516

14

Tamper-Evident Linkage Assy.

61G3519

15

Front Bezel

61G3515

17

Diskette Drive Blank Bezel

71G5001

18

3.5 Inch Diskette Drive Bezel

71G5000

19

Operator Panel Card Assy.

92F0259

Speaker

33F8444

20

Operator Panel Bezel

61G3517

21

DASD Tray Assembly
(w/o drive/cable)

61G3832

22

Base Frame(R)

61G3822

23

System Board
(w/o memory)

92F2623

Battery

33F8354

24

SCSI Adapter for RAID Array Ctrl

92F0335

SCSI Adapter 1-MB (30-Pin) Memory

xxxxxxx

RAID-Cable Converter Adapter Card to 4 mm SCSI - Tape
(68-Pin to 50-Pin)

92F0324

RAID-Cable Converter Adapter Card to SCSI CD-ROM
(68-Pin to 50-Pin

71G2552

25

SVGA-NI Display Adapter/A

71G4877

26

Processor Boards

80486DX2-33/66 Processor

61G2343

Pentium 60 MHz
(wrong Pentium Processor !)

52G9362

Pentium 60 MHz
(replaced Pentium Processor)

06H7324

Pentium 66 MHz
(wrong Pentium Processor !)

92F0120

Pentium 66 MHz
(replaced Pentium Processor)

06H7317

27

System Board Memory Module Kits

Parity Memory Module Kits

2MB (70 ns)
4MB High-Reliability Parity SIMM (70 ns)
8MB High-Reliability Parity SIMM (70 ns)

92F0102
71G6203
71G6204

ECC Memory Module Kits:

4MB (70 ns)
8MB (70 ns)
16MB (70 ns)

92F0097
92F0098
96F9100

28

Access Cover Fan
Access-Cover Fan Cable
Keylock Assembly
Adapter Guide
Ground Spring (left)
Ground Spring (right)
I/O Shadowbox Ground Spring (with thumbscrews)
DASD Ground Spring
Misc. Parts Kit
Cable Cover (Option)
Cable Cover Lock/Plug (Option)

61G3827
61G3824
61G3825
33F8440
33F6853
61G3528
92F0099
96F9199
33F8435
61G3841
61G3842

Cables:

31. SCSI Drive Cable (4-drives)

61G3524

32. SCSI Drive Cable (3-drives)

61G3523

33. Diskette Drive Signal Cable

92F0283

34. Operator Panel Cable (connects to system board)

92F0239

Hard Disk Drive Power (3 x)
Hard Disk Drive Power (4 x)

61G3521
61G3522

37. Operator Panel Cable
(connect to processor card)

61G3817

Search Keywords

Document Category

Service Parts

Date Created

10-09-96

Last Updated

21-05-99

Revision Date

27-01-99

Brand

IBM PC Server

Product Family

Server 95

Machine Type

9595

Model

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

Index:		FRU P/N:
1	Access Cover	61G3533
2	Rear Bezel	61G3823
3	400 Watt Power Supply Power Supply Ground Strap	92F0267 33F8418
4	Pedestal with Plate	33F8422
5	Tamper-Evident Switch/Cable Assy.	61G3518
6	Drive Support Structure	92F0280
7	Hot Plug Rack (3 bay)	61G3526
	Hot Plug Rack (1 bay)	61G3527
	Microswitch Housing (for 61G3526, 61G3527)	61G3837
	Microswitch Assembly (for 61G3526, 61G3527)	71G4981
	Microswitch Shaft (for 61G3526, 61G3527)	61G3838
8	1GB 1/3 Ht. Hard Disk Drive (SCSI)	92F0428
	Address Cable with tape (for 92F0428)	61G3834
	Blank Tray (for 92F0428)	61G3832
	1GB 1/3 Ht. Hard Disk Drive (SCSI) (with tray/cable)	61G3828
	1GB Hard Disk Drive (SCSI) (w/o tray/cable)	71G5040
	68 Pin Fast/Wide Tray Asm.	06H7757
	Address ID-Cable for 71G5040	71G0215
	2-Feature Bezel	64F0168
	5.25 Inch Diskette Drive Bezel	64F4103
	5.25 Inch Framing Bezel	33F8459
	CD-ROM Drive I and II Bezel	64F0138
	Rewriteable Optical Drive Bezel	85F0018
	2.88MB 3.5 Inch Diskette Drive (with slide)	64F0204
	Diskette Drive Cable (for 64F0204)	92F0283
	Drive Slide (for 64F0204)	64F0156
	2.88MB 3.5 Inch Diskette Drive (with electr. eject.)	92F0129
	Bezel (for 92F0129)	92F0130
	540MB 1/3 Ht. Hard Disk Drive (SCSI)	92F0406
	Address Cable with tape (for 92F0406)	61G3833
	540MB 1/3 Ht. Hard Disk Drive (SCSI) (with tray/cable)	61G3525
	2.0/4.0-GB 4 mm Tape Drive	FRU P/N
	127MB / 230MB Rewriteable Optical Drive	FRU P/N
	Internal CD-ROM-(I and II)	FRU P/N
9	Hot Plug Rack Rail Hot Plug Adapter Hot Plug Adapter Terminator	71G4982 61G3835 61G3836
10	2.88MB 3.5 Inch Diskette Drive (with slide)	64F0204
11 - 16	DASD Bezel (medium)	64F4136
12	Feature Bezel (small)	33F8425
13	Drive Retainer	61G3516
14	Tamper-Evident Linkage Assy.	61G3519
15	Front Bezel	61G3515
17	Diskette Drive Blank Bezel	71G5001
18	3.5 Inch Diskette Drive Bezel	71G5000
19	Operator Panel Card Assy.	92F0259
	Speaker	33F8444
20	Operator Panel Bezel	61G3517
21	DASD Tray Assembly (w/o drive/cable)	61G3832
22	Base Frame(R)	61G3822
23	System Board (w/o memory)	92F2623
	Battery	33F8354
24	SCSI Adapter for RAID Array Ctrl	92F0335
	SCSI Adapter 1-MB (30-Pin) Memory	xxxxxxx
	RAID-Cable Converter Adapter Card to 4 mm SCSI - Tape (68-Pin to 50-Pin)	92F0324
	RAID-Cable Converter Adapter Card to SCSI CD-ROM (68-Pin to 50-Pin	71G2552
25	SVGA-NI Display Adapter/A	71G4877
26	Processor Boards 80486DX2-33/66 Processor	61G2343
	Pentium 60 MHz (wrong Pentium Processor !)	52G9362
	Pentium 60 MHz (replaced Pentium Processor)	06H7324
	Pentium 66 MHz (wrong Pentium Processor !)	92F0120
	Pentium 66 MHz (replaced Pentium Processor)	06H7317
27	System Board Memory Module Kits Parity Memory Module Kits 2MB (70 ns) 4MB High-Reliability Parity SIMM (70 ns) 8MB High-Reliability Parity SIMM (70 ns)	92F0102 71G6203 71G6204
	ECC Memory Module Kits: 4MB (70 ns) 8MB (70 ns) 16MB (70 ns)	92F0097 92F0098 96F9100
28	Access Cover Fan Access-Cover Fan Cable Keylock Assembly Adapter Guide Ground Spring (left) Ground Spring (right) I/O Shadowbox Ground Spring (with thumbscrews) DASD Ground Spring Misc. Parts Kit Cable Cover (Option) Cable Cover Lock/Plug (Option)	61G3827 61G3824 61G3825 33F8440 33F6853 61G3528 92F0099 96F9199 33F8435 61G3841 61G3842
	Cables: 31. SCSI Drive Cable (4-drives)	61G3524
	32. SCSI Drive Cable (3-drives)	61G3523
	33. Diskette Drive Signal Cable	92F0283
	34. Operator Panel Cable (connects to system board)	92F0239
	Hard Disk Drive Power (3 x) Hard Disk Drive Power (4 x)	61G3521 61G3522
	37. Operator Panel Cable (connect to processor card)	61G3817
