TP 390,390E,1720 - Speaker ASM 13.3" Removal

28.597 bytes

Service Hints & Tips

Document ID: BMOE-42EKTJ

TP 390,390E,1720 - Speaker ASM 13.3" Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

Battery ASM
Hard Disk Drive
Combo Bay
Keyboard
LCD Bezel ASM 13.3"

To remove the speaker:

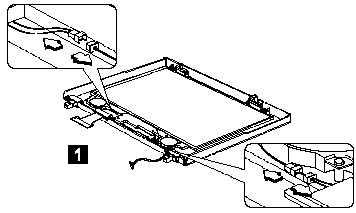

1. Carefully disconnect the speaker cable from the connector.

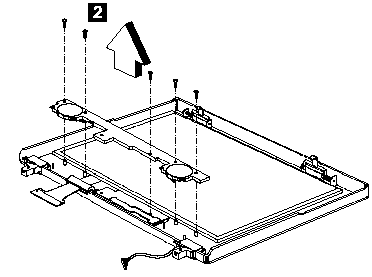

2. Remove the five screws securing the speaker.

3. Gently lift the speaker away from the display panel.

Step

Size (Quantity)

Head &
Color

Torque

2

M2 x 4L (5)

Flat head,
silver

1.6 kgf-cm

Note: Make sure you use the correct screw for replacement.
