PC Server 325 - Microprocessor Board components

Applicable to: World-Wide

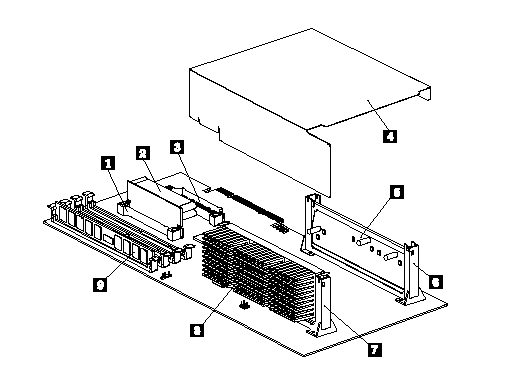

Microprocessor Board Components

1 Primary VRM connector
2 Primary VRM
3 Secondary VRM connector
4 Air baffle
5 Terminator card in secondary microprocessor connector
6 Secondary microprocessor bracket (goal-post)
7 Primary microprocessor bracket (goal-post)
8 Primary microprocessor
9 Dual-inline memory module (DIMM) in memory-module connector 1

Note If you are installing an additional microprocessor, remove the terminator card ( 5 ) from the secondary microprocessor connector. The second microprocessor installed, becomes the startup (boot) microprocessor.
