Parts Information |
Document ID: GSMH-3ANDWS |
Aptiva - 2144/2168 (SL-I) CD-ROM, Sound Cards service parts (Multimedia Models)
Applicable to: World-Wide

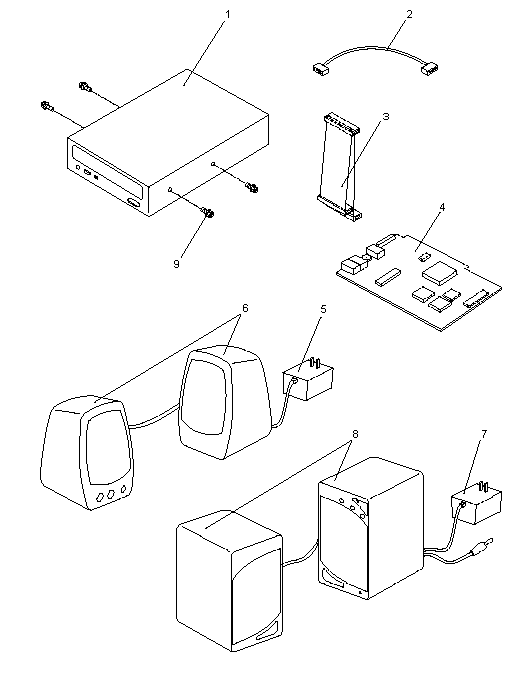

CD-ROM, Sound Cards (Multimedia Models):
|
Asm - |
Part |
Units |
Description |
|
6-1 |
See the Appendix 'Model/Monitor Configurations and FRU Part Numbers' for model | ||
|
-1 |
06H7654 |
1 |
5.25-in. CD-ROM Drive (4X-IDE) |
|
-1 |
06H9441 |
1 |
5.25-in. CD-ROM Changer (4X-IDE) |
|
-1 |
06H9429 |
1 |
5.25-in. CD-ROM Drive (6X-IDE) |
|
-2 |
10H2924 |
1 |
CD-ROM Drive Audio Cable (MM3) |
|
-2 |
04H5990 |
1 |
CD-ROM Drive Audio Cable (MM4) |
|
-3 |
93F2394 |
1 |
CD-ROM/Hard Disk Ribbon |
|
-3 |
93F2395 |
1 |
Diskette Drive Ribbon Cable |
|
-NS |
06H5743 |
1 |
Hard Disk /CD-ROM Bracket (Machine Type 2144 Only) |
|
-4 |
38H6795 |
1 |
Sound Adapter Card (MM3) |
|
-4 |
25H5895 |
1 |
Sound Adapter Card (MM4) |
|
-4 |
38H6789 |
1 |
Mwave Adapter Card |
|
-4 |
41H9626 |
1 |
Mwave Adapter Card (Austria) |
|
-4 |
55H6504 |
1 |
Mwave Adapter Card (Belgium) |
|
-4 |
41H9619 |
1 |
Mwave Adapter Card (Denmark) |
|
-4 |
55H6500 |
1 |
Mwave Adapter Card (Finland) |
|
-4 |
38H6785 |
1 |
Mwave Adapter Card (France) |
|
-4 |
38H6787 |
1 |
Mwave Adapter Card (Germany) |
|
-4 |
38H6793 |
1 |
Mwave Adapter Card (Italy) |
|
-4 |
41H9613 |
1 |
Mwave Adapter Card (Japan) |
|
-4 |
41H9629 |
1 |
Mwave Adapter Card |
|
-4 |
41H9632 |
1 |
Mwave Adapter Card (New Zealand) |
|
-4 |
55H6502 |
1 |
Mwave Adapter Card |
|
-4 |
42H4864 |
1 |
Mwave Adapter Card (Norway) |
|
-4 |
38H6791 |
1 |
Mwave Adapter Card (Spain) |
|
-4 |
41H9616 |
1 |
Mwave Adapter Card (Sweden) |
|
-4 |
41H9622 |
1 |
Mwave Adapter Card |
|
-4 |
38H6795 |
1 |
Mwave Adapter Card (UK) |
|
-4 |
42H0856 |
1 |
Mwave Adapter Card |
|
-5 |
10H2833 |
1 |
Speaker Power Supply (MM3) |
|
-5 |
10H2835 |
1 |
Speaker Power Supply(MM3) (U.K.) |
|
-5 |
10H2837 |
1 |
Speaker Power Supply (MM3) (EMEA) |
|
-5 |
10H3076 |
1 |
Speaker Power Supply (MM3) (AP) |
|
-6 |
74G0311 |
2 |
Speakers (MM3) (Cables included) |
|
-7 |
04H5588 |
1 |
Speaker Power Supply (MM4) (U.S. and Canada) |
|
-7 |
10H2839 |
1 |
Speaker Power Supply (MM4) (U.K.) |
|
-7 |
10H2841 |
1 |
Speaker Power Supply (MM4) (EMEA) |
|
-7 |
10H3077 |
1 |
Speaker Power Supply (MM4)(AP) |
|
-8 |
73G4527 |
2 |
Speakers (MM4) (Cables included) |
|
-7 |
42H0951 |
1 |
Speaker Power Supply (MM5) (U.K.; Sub-Woofer) |
|
-7 |
42H0953 |
1 |
Speaker Power Supply (MM5) (EMEA; Sub-Woofer) |
|
-8 |
42H1008 |
2 |
Speakers (MM5) (Cables included) (EMEA; Sub-Woofer) |
|
-NS |
30H2312 |
1 |
Microphone (Headset /Base |
|
-NS |
60G2272 |
1 |
Microphone (Base included - |
|
-9 |
93F0041 |
1 |
Packet (Mounting screws) |
|
Search Keywords |
| |
|
Document Category |
Service Parts | |
|
Date Created |
04-10-96 | |
|
Last Updated |
07-04-99 | |
|
Revision Date |
07-04-2000 | |
|
Brand |
IBM Aptiva | |
|
Product Family |
Aptiva | |
|
Machine Type |
2144, 2168 | |
|
Model |
A10; A12; A14; A15; A40; A44; A45; A50; A51; A52; A90; A92; A94; C45; 120; 121; 123; 131; 132; 133; 141; 142; 152; 154; 161; 162; 163; 171; 172; 182; L11; L15; L16; K25; K26; L33; K33; L43; K43; L35; K35; L45; K45; KU5; L55; K55; L65; K65; L66; K66; U11; U15; U16; U33; U43; U35; U45; U55; U65; U66; X17; X27; X37; X47; Y17; Y27. Y37; Y47; Z17; Z27; Z37; Z47; S20; S50; S55; S65; S64; S74; S75; W37; W47 | |
|
