Aptiva - 2134/2176 CD-ROM 8x FRU 75H9748 (SL-A)
Applicable to: World-Wide
|
Primary Manufacturer |
Hitachi or MKE |
|
Support |
World-wide |
|
Photo CD Support |
Yes (XA multi-session) |
|
Loading Method |
Automatic tray |
|
Interface |
IDE |
|
Standards |
ATAPI |
|
Data Capacity | |
|
Mode 1 |
680 MB |
|
Mode 2 |
770 MB |
|
Data Transfer Rate (Sustained) |
1,200 KB/sec |
|
Access Time | |
|
Random Access Time (maximum) |
150 ms |
|
Maximum Access Time (maximum) |
280 ms (310 ms MKE) |
|
Spin-up Time |
|
|
From Stand-by to Ready |
3 sec (1 sec MKE) |
|
From Power-on to Ready |
6 sec (typical) |
|
Physical Specifications | |
|
Size |
190mm x 41mm x 146mm |
|
Environmental Temperature | |
|
Operating |
5 to 45 C |
|
Storage |
-30 to 60 C |
|
Maximum rate of change |
10 C per Hour |
|
Relative Humidity | |
|
Operating |
15% to 85% |
|
Non-operating |
10% to 90% |

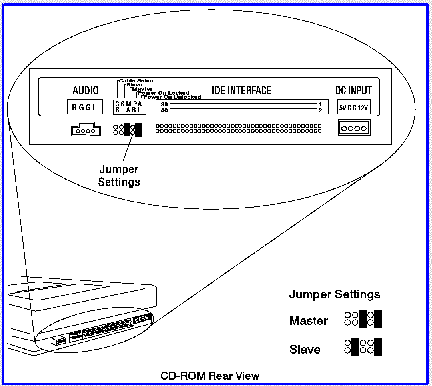

Jumper Settings
|
