Service Hints & Tips

Document ID: GSMH-3FCCKZ

IBM PC/IBM IntelliStation - Hard disk drive jumper settings

Applicable to: World-Wide

Hard Disk Drive Jumper Settings:
IDE hard disk drives for the PC 300/700 series computers use jumpers to set the drives as primary (master) or secondary (slave).

For SCSI hard disk drives, see SCSI Hard Disk Drive Settings.

Attention: Refer to the hard disk drive label on the drive, or to the figures below for the hard disk drive settings.

IDE Hard Disk Drive Settings:

1	Primary (Master) Hard Disk Drive
2	Secondary (Slave) Hard Disk Drive

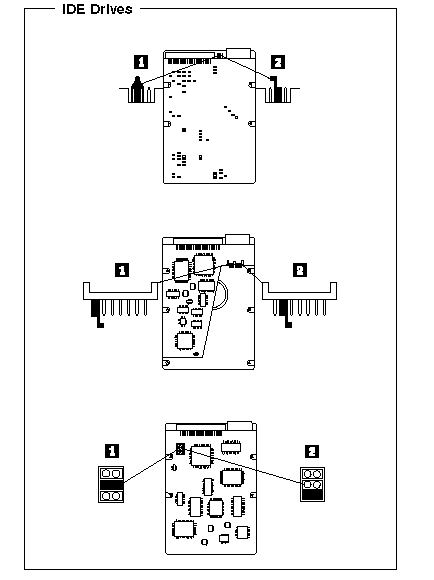

IDE Drives:

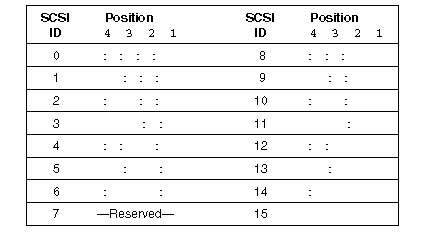

SCSI Hard Disk Drive Settings:

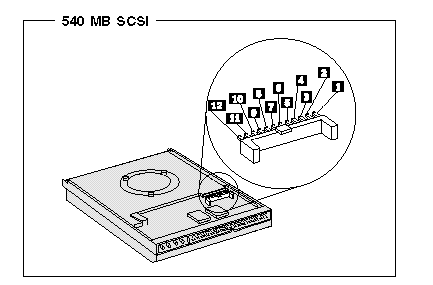

540 MB SCSI

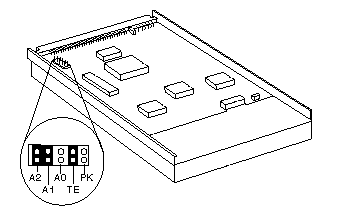

1 GB SCSI:

SCSI ID	Position A2 A1 A	SCSI ID	Position A2 A1 A0
7	On On On	3	Off On On
6	On On Off	2	Off On Off
5	On Off On	1	Off Off On
4	On Off Off	0	Off Off Off

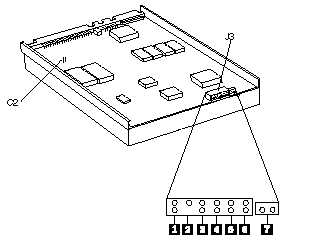

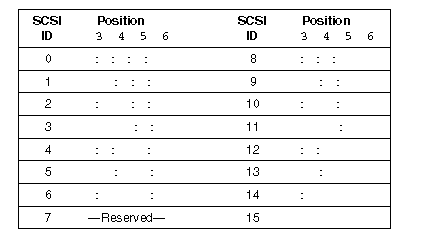

1.12 GB, 2.25 GB SCSI:

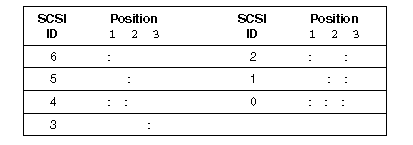

2 GB SCSI:

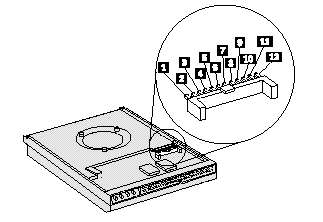

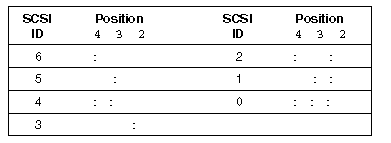

2.1 GB, 4.5 GB SCSI:

	Search Keywords
	Hint Category	Hardware Maintenance Information
	Date Created	20-03-97
	Last Updated	18-05-99
	Revision Date	26-05-2000
	Brand	IBM IntelliStation, IBM PC
	Product Family	M Pro, Z Pro, PC 300GL, PC 750, PC 730, PC 365, PC 360, PC 350, PC 340, PC 330, PC 300PL, PC 300XL
	Machine Type	6888, 6889, 6898, 6899, 6272, 6282, 6561, 6591, 6562, 6592, 6862, 6892, 6588, 6571, 6573, 6575, 6576, 6577, 6560, 6581, 6583, 6585, 6586, 6587, 6598, 6589, 6875, 6876, 6877, 6885, 6886, 6887, 6284, 6897
	Model	All
