TP 3550 Expansion Unit - Parts Locations
Applicable to: World-Wide
Locations:

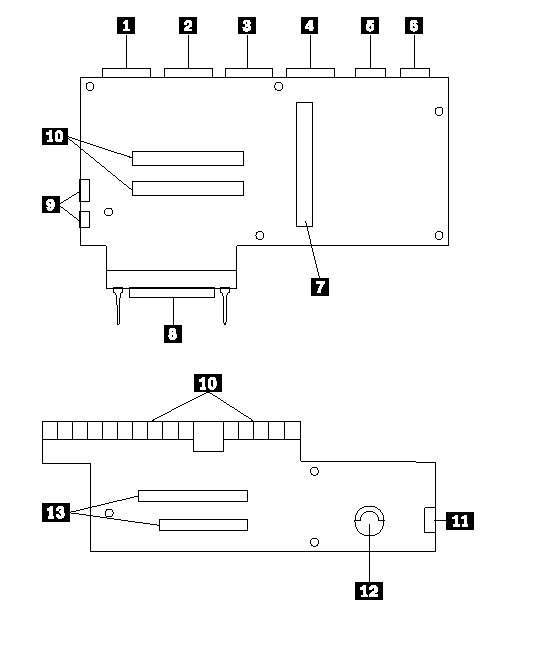

System Board:
|
1 |
External SCSI Connector |
|
2 |
Serial Connector |
|
3 |
Parallel Connector |
|
4 |
Pointing Device Connector |
|
5 |
Keyboard Connector |
|
6 |
120-Pin Connector |
|
7 |
System Board-Sub Connector |
|
8 |
Power Supply Connectors |
|
9 |
Internal SCSI Cable Connector |
|
10 |
System Board-Main Interface |
|
11 |
Wire Assembly Connector |
|
12 |
Backup Battery |
|
13 |
16-Bit Expansion Slots |
|
