Service Hints & Tips |
Document ID: DETR-3TZMNW |

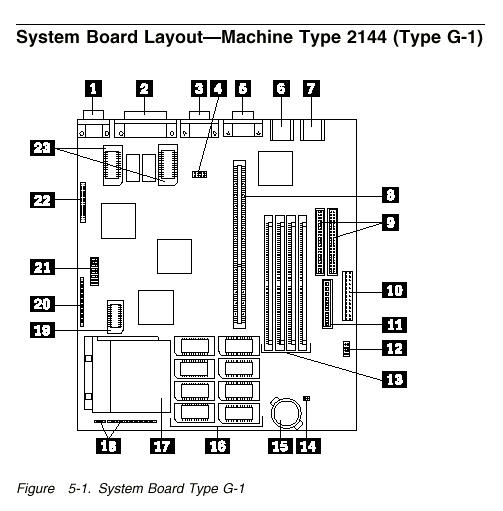

Aptiva - 2144-S15 System board layout, locations, and switches
Applicable to: United States
1. - J1K1 Video display connector
2. - J3K1 Parallel port connector
3. - J5K1 Serial port connector

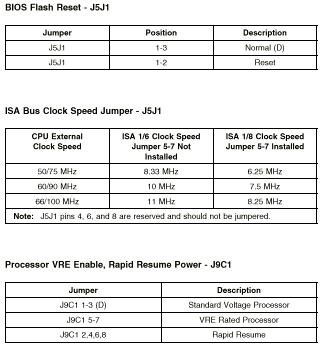

4 - J5J1 BIOS Flash jumper
5 - J6K1 Serial port connector
6 - J7K1 Mouse port connector
7 - J8K1 Keyboard connector
8 - J6F1 PCI/ISA Riser connector
9 - J9F2 Primary (outer) IDE connector
9 - J8F1 Secondary (inner) IDE connector
10 - J9E1 Power connector
11 - J9D1 Diskette drive connector
12 - J9C1 Processor VRE Enable
13 - Memory module connectors
14 - J8A1 CPU 3.3V voltage regulator
15 - RTC Battery
16 - 512KB Cache memory connectors
17 - U2B1 Processor connector
18 - J2A2 Front panel I/O connector
19 - U2D1 Cache Tag memory connector
20 - J1D1 Front panel I/O connector

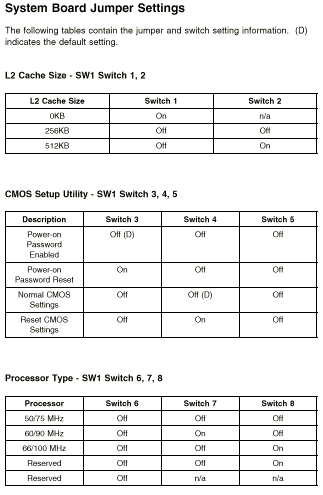

21 - SW1 Configuration switch block
- L2 Cache
- CMOS settings
- Power-on password
- Processor type
22 - J1H1 VESA connector
23 - 2MB Video memory connectors
|
