Aptiva - 2162 Media Console locations and connectors
Applicable to: World-Wide
Media Console

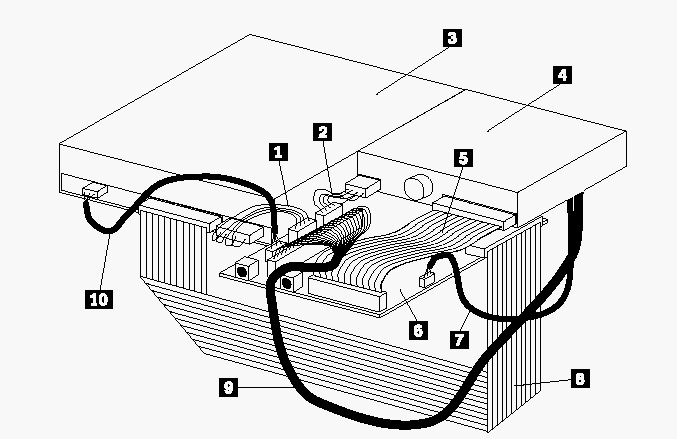

Figure 5-16. Media Console Connectors (Rear View)
1 CD-ROM drive power connector
2 3.5-in. diskette drive power connector
3 CD-ROM drive
4 3.5-in. diskette drive
5 3.5-in. diskette drive cable
6 Media Console Client card
7 On/Off switch cable
8 CD-ROM cable
9 Media Console cable
10 CD-ROM audio cable
Media Console Physical Specifications
Weight 6.8 lbs (aprox 3 kg)
Back Width: 331 mm
Front Width: 392.6 mm
Depth: 263 mm
Thickness: 56 mm
Table 5-2. Media Console Pin Numbering
|
Pin |
Signal |
Pin |
Signal |
|
1 |
DATA15 |
26 |
CD_AUDIO_L |
|
2 |
DATA14 |
27 |
CD_AUDIO_LGND |
|
3 |
DATA13 |
28 |
CD_AUDIO_R |
|
4 |
DATA12 |
29 |
CD_AUDIO_RGND |
|
5 |
DATA11 |
30 |
+12V_DROP |
|
6 |
DATA10 |
31 |
+12V_DROP |
|
7 |
DATA_9 |
32 |
+12V_DROP |
|
8 |
DATA8 |
33 |
+12VDC |
|
9 |
ADR_EN |
34 |
+12VDC |
|
10 |
DAT_EN# |
35 |
+12VDC |
|
11 |
R/W# |
36 |
GND |
|
12 |
IRQ_STRB# |
37 |
GND |
|
13 |
TC_BUF |
38 |
GND |
|
14 |
DRQA# |
39 |
GND |
|
15 |
DRQB# |
40 |
GND |
|
16 |
DRQC# |
41 |
GND |
|
17 |
HDD_IORDY |
42 |
GND |
|
18 |
DATA7 |
43 |
GND |
|
19 |
DATA6 |
44 |
GND |
|
20 |
DATA5 |
45 |
GND |
|
21 |
DATA4 |
46 |
GND |
|
22 |
DATA3 |
47 |
SPARE |
|
23 |
DATA3 |
48 |
PWR_LED_ANODE |
|
24 |
DATA1 |
49 |
AUX5 |
|
25 |
DATA0 |
50 |
ON_PULSE |
|
