Parts Information

Document ID: GSMH-3F9L9K

PC Server 520 - System Parts Listing

Applicable to: World-Wide

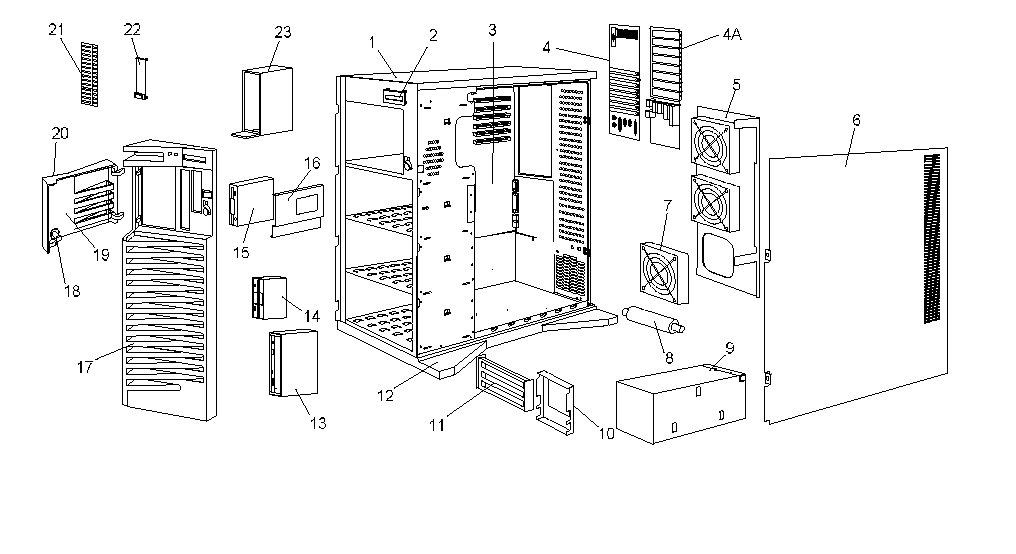

Index System Unit (PC Server 520 - Type 8641)

The model(s) listed for the following FRUs indicates FRUs that the models may contain at the time of shipping. However, other FRUs are supported in each model as options.

1.

Base Frame

06H8028

2.

LED Panel Assembly
LED Panel Assemby Support

06H8031
10L7054

3.

System Board with 512K Cache, without SVGA, SCSI (Models ED1, EDE, EDL,EZ1, EZS, EZE, EZL, ED0, EDV, EZ0, EZV)

06H9989

3.

System Board with SVGA & SCSI, without Cache (Models MDE, MDL, MZS, MZE, MZL, MD0, MDV, MZO, MZV)

96G2648

4.

Die Cast Assembly (Models ED1, EDE, EDL, EZ1, EZS, EZE, EZL, ED0, EDV, EZ0, EZV)

06H9360

4A.

Die Cast Assembly (Models MDE, MDL, MZS, MZE, MZL, MD0, MDV, MZO, MZV)

06H9361

5.

Fan Mounting Support

82G3618

6.

Right Side Door

82G3594

7.

3-Fan Assembly

06H3407

8.

Pedestal Wheel with Axle

82G3609

9.

434W Power Supply Assembly

06H3596

10.

8-Card Guide

06H8057

11.

4-Card Guide Support (Models MDE, MDL,
MZS, MZE, MZL, MD0, MDV, MZO, MZV)

82G3603

12.

Pedestal

82G3608

13.

CD-ROM Drive, see DASD (PC Server 520 - Type 8641)

14.

Diskette Drive see DASD (PC Server 520 - Type 8641)

15.

Hard Disk Drive, see DASD (PC Server 520 - Type 8641)

16.

DASD Tray Assembly - Hot Swap with Cable
(Models ED1, EDE, EDL, ED0, EDV, MDE, MDL, MD0, MDV)

06H8631

16.

DASD Tray Assembly - Hot Swap Wide (Models EZ1, EZS, EZE, EZL, EZ0, EZV,
MZS, MZE, MZL, MZO, MZV)

06H3956

17.

Front Bezel with Shield

06H8973

18.

Keylock with Key

82G3606

19.

DASD Door

82G3596

20.

IBM Logo (restricted)

82G3601

21.

5.25-Inch Hard Disk Drive Bezels

06H8684

with Spacer 22 Control Panel Bezel

06H3595

23.

CD Storage Tray

06H5060

Index System Unit (PC Server 520 - Type 8641 continued)

16/8 Bit SCSI Converter

92F0324

512K Cache (Models MDE, MDL, MZS, MZE, MZL, MD0, MDV, MZO, MZV)

96G2413

16MB EOS Memory SIMM (Models ED1, EDE, EDL, EZ1, EZS, EZE, EZL, ED0, EDV, EZ0, EZV)

11H0634

16MB EOS Memory SIMM (Models MDE, MDL, MZS, MZE, MZL, MD0, MDV, MZO, MZV)

11H0646

DASD Hot Swap Backplane Assembly (Models ED1, EDE, EDL, ED0, EDV, MDE, MDL, MD0, MDV)

06H8629

DASD Hot Swap Backplane Assembly Models EZ1, EZS, EZE, EZL, EZ0, EZV, MZS, MZE, MZL, MZO, MZV)

06H8388

DASD Mounting Plate

82G3602

Ethernet PCI Card (Models EDL, EZL, MDL, MZL)

82G3602

Hinges (2 each)

82G3600

Hot Swap Cam Spring, Shaft & Knob

06H5059

Keyboard with Cable,
see 'Keyboards (101/102 Key)—)

LED/Speaker, Power Switch

06H8037

Cable Assembly

Memory High Rise Card
(Models MDE, MDL, MD0, MDV)

96G3692

Memory High Rise Card
(Models MZS, MZE, MZL, MZ0, MZV)

96G1339

Miscellaneous Parts Kit
C2 Spring
EMI Ground Clips (4 each)
Lock Pawl
Screws (4 each)
System Board Mounting Boss (2 each)

82G3611

Mouse

06H4595

P54C 66/100MHz Processor Chip with Heat Sink (Models EZ1, EZS, EZE,EZL, EZ0, EZV)

75H8846

P54C 66/100MHz Processor Chip
with Heat Sink (Models MZS, MZE, MZL, MZO, MZV)

96G2415

P54C 66/133MHz Processor Chip with Heat Sink (Models ED1, EDE, EDL,ED0, EDV)

96G2423

P54C 66/133MHz Processor Chip Models MDE, MDL, MD0, MDV)

06H9492

Power Supply Adapter Board

06H8977

SCSI-2 Hard File Card
(Models ED1, EDE, EDL)

06H5078

SCSI-2 RAID PCI Card (Models EZ1, EZS, EZE, EZL)

06H5078

SCSI Fast/Wide Card
(Models ED0, EDV, EZ0, EZV)

06H8574

Speaker with Bracket

33F8444

SVGA Card (Models ED1, EDE, EDL, ED0, EDV)

06H9114

SVGA Card (Models EZ1, EZS, EZE, EZL, EZ0, EZV)

71G0031

Index Power (PC Server 520 - Type 8641)

Battery (Models MDE, MDL, MZS, MZE, MZL, MD0, MDV, MZO, MZV)

33F8354

see -'Battery Notice'

Power Cord, see 'Power Cords—.

Real-Time Clock with Battery (Models ED1, EDE, EDL, EZ1, EZS, EZE, EZL, ED0, EDV, EZ0, EZV)

06H3398

see -- Heading 'Battery Notice'-

Index DASD (PC Server 520 - Type 8641)

13.

4X CD-ROM Drive

88G4921

14.

1.44MB Diskette Drive

93F2361

15.

2GB Hard Disk Drive

06H3372

Index Options (PC Server 520 - Type 8641)

220W Power Supply Assembly

06H3237

P54C 66/100MHz Processor Chip with Heat Sink

06H6063
