Netfinity 7000 M10 - I/O Function Card Component Locations
Applicable to: World-Wide
Source: Hardware Maintenance Manual
I/O Function Card Component Locations

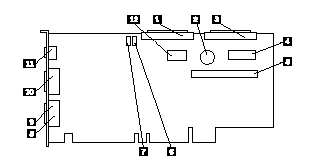

The following simplified layout of the I/O function card identifies the components.
|
1 |
External SCSI connector (channel A) |
|
2 |
Battery |
|
3 |
Internal SCSI connector (channel B) |
|
4 |
Operator panel connector |
|
5 |
Diskette drive connector |
|
6 |
Password override jumper (J17) |
|
7 |
Flash page swap jumper (J16) |
|
8 |
Parallel port connector |
|
9 |
Video port connector (The video port connector |
|
10 |
Serial port A and B connectors |
|
11 |
Keyboard and mouse connectors (The keyboard |
|
12 |
Advanced Remote Management Controller connector |
|
