PC Server 720 - System Parts Listing
Applicable to: World-Wide

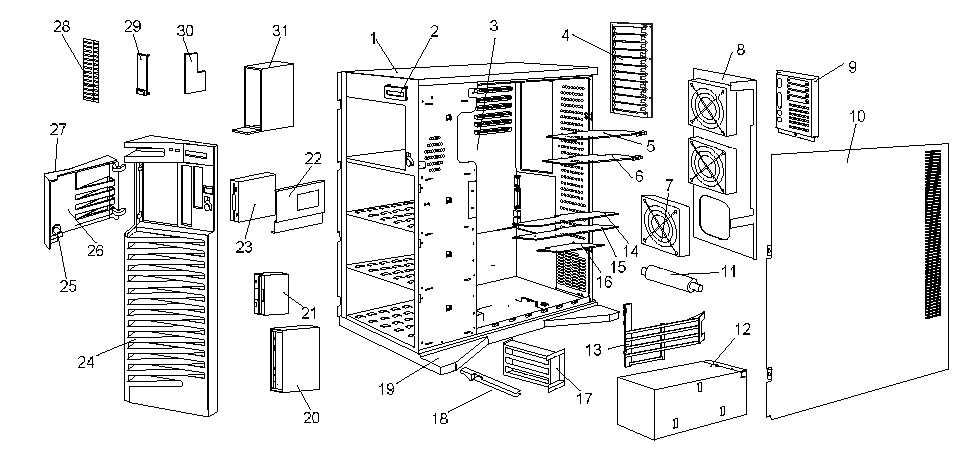

Part Listing Diagram
Parts Listing
|
1 |
Base Frame (2X CD-ROM) |
82G3593 |
|
Base Frame (4X CD-ROM) |
06H8685 | |
|
2 |
Information Display Assembly (LED) |
82G3614 |
|
Display Panel Support |
06H7961 | |
|
3 |
System Board (without Memory and Processor) |
06H1810 |
|
8MB ECC (X36) Memory SIMM |
06H7760 | |
|
4 |
I/O Panel Die Cast |
06H3573 |
|
5 |
SCSI Fast/Wide Adaptec Adapter (0Z0 Only) (AHA-2940W) |
06H6431 |
|
6 |
SCSI-2 Fast/Wide RAID Adapter |
06H3059 |
|
7 |
Fan |
82G3616 |
|
8 |
Fan Mounting Support (without Fans) |
82G3618 |
|
9 |
I/O Flex Plate |
06H3574 |
|
10 |
Right Side Door |
82G3594 |
|
Right Side Door Hinges (with Screws) |
82G3600 | |
|
11 |
Pedestal Wheel (with Axle) |
82G3609 |
|
12 |
470-Watt Power Supply Assembly |
06H3589 |
|
13 |
Processor Card Support |
06H8683 |
|
14 |
PCI Bridge Card |
76H7134 |
|
15 |
512MB Memory Card |
71G0696 |
|
16 |
P54C-100/66MHz Processor Card |
71G0692 |
|
17 |
3-Cards Guide Support |
06H8524 |
|
4-Cards Guide Support |
06H8523 | |
|
18 |
Card Guide |
82G3604 |
|
Adjustable Card Guide Arm |
06H8525 | |
|
19 |
Pedestal |
82G3608 |
|
20 |
Slim-Line CD-ROM Drive (2X) |
06H2150 |
|
CD-ROM Drive (4X) |
88G4921 | |
|
21 |
2.88MB Diskette Drive |
82G1888 |
|
22 |
DASD Hot-Swap Tray Assembly (Wide) |
06H3956 |
|
DASD Hot-Swap Backplane Assembly |
06H8388 | |
|
DASD Hot-Swap Cam Spring (Shaft and Knob) |
06H5059 | |
|
SCSI-Fast/Wide Cable Flex (for 1 drive) |
06H6145 | |
|
DASD Mounting Plate |
82G3602 | |
|
23 |
2GB SCSI Hard Disk Drive (2ZS and 4ZS) |
06H3372 |
|
24 |
Front Bezel (with Shield - 2X CD-ROM) |
06H7874 |
|
Front Bezel (with Shield - 4X CD-ROM) |
06H8686 | |
|
25 |
Keylock (with Keys) |
82G3606 |
|
26 |
DASD Door |
82G3596 |
|
27 |
IBM Logo (R) |
82G3601 |
|
28 |
5.25-Inch Drive Bezel with Spacer 2X CD-ROM |
82G3599 |
|
28 |
5.25-Inch Drive Bezel with Spacer 4X CD-ROM |
06H8684 |
|
29 |
Control Panel Bezel |
82G3607 |
|
Slim Bezel (4X CD-ROM) |
06H8684 | |
|
30 |
Control Panel Card |
06H7097 |
|
Speaker (with Bracket) |
33F8444 | |
|
Rubber Dome Switch Pad |
06H7873 | |
|
31 |
CD Storage Tray |
06H5060 |
|
Keyboard (with Cable) |
71G4646 | |
|
Mouse |
06H4595 | |
|
Power Cord |
62X1045 | |
|
Real-Time Clock (with Battery) |
82G3620 | |
|
Miscellaneous Parts Kit C2 Spring (1) |
82G3611 |
|
