TP 560/E - 1050 Keyboard Unit
Applicable to: World-Wide
1050 Keyboard Unit:
Battery Pack (1030)
|

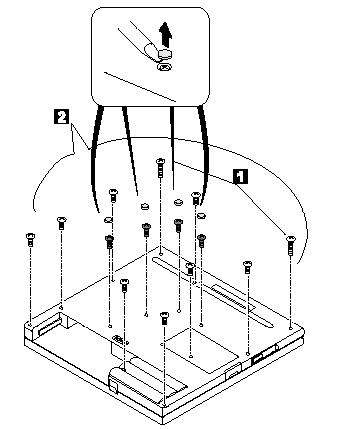

Step |
Length (Quantity) |
Torque |
|
1 |
12 mm, nylon coating (2) |
4.0 kgcm |
|
2 |
7 mm, nylon coating (12) |
4.0 kgcm |
|
Note: |
Do not use the screw that you have removed. |
|
Use a new screw and tighten the screw to the torque specification shown. |
When replacing:

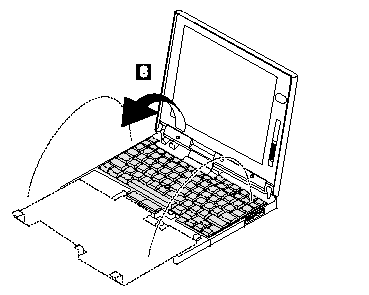

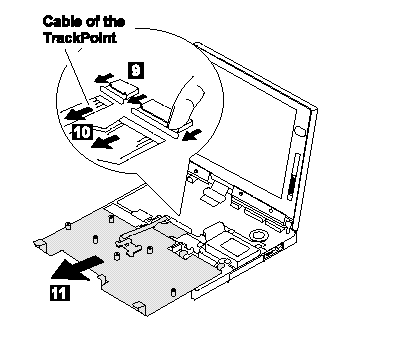

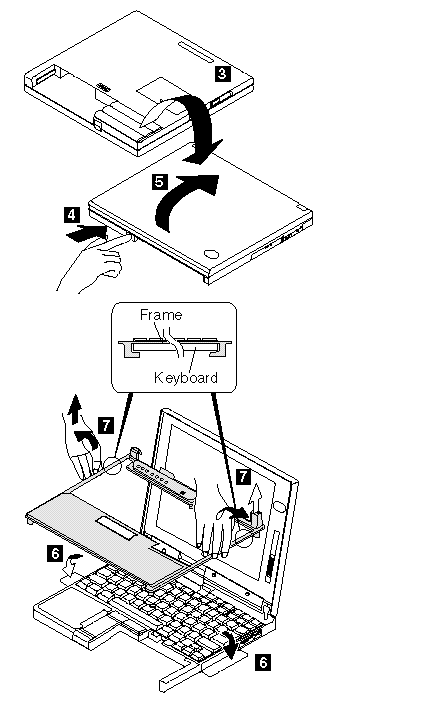

When replacing the frame first replace the middle four screws that shown in black in the figure; then check whether the click buttons of the TrackPoint III can be pressed correctly.
If the frame is not in place, the click buttons do not work.
Note:
Be careful not to remove the Esc key when you remove the frame. If Esc key is removed, replace the key as shown.
|
