Service Hints & Tips |
Document ID: COBN-3HABKG |
TP 380,385 - System board assembly diagram
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

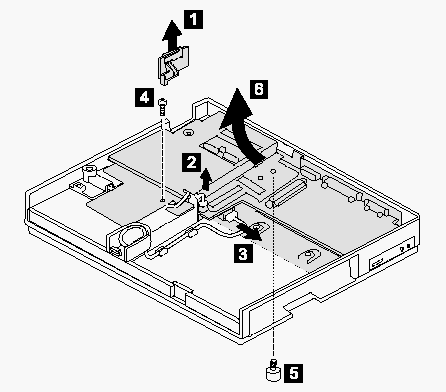

1080 System Board Assembly
Notes:
1. The system unit serial number must be restored when the system board is replaced. To restore the system unit serial number, select the option ¿Set system identification— on the maintenance diskette. The flash ROM on the system board contains the vital product data (VPD)¬that is, the system unit serial number, system board system number, and other computer-unique data.
2. Do not power off the computer when restoring the VPD. The system unit serial number label is attached to the base cover.
3. Before removing and replacing the system board assembly, make sure that the PCMCIA cards are removed and the eject levers are not sticking out.
Battery Pack (1010)
DIMM Cover (1020)
Keyboard Unit (1030)
CD-ROM/FDD Assembly (1040)
LCD Unit (1070)
Hard Disk Drive (1060)
Note:

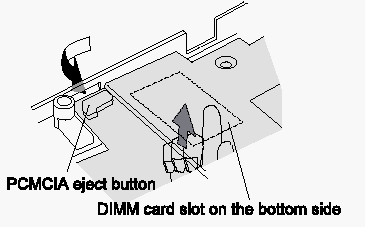

As the PCMCIA eject buttons are sticking out, pull the buttons out slightly and fold them to the right; then push up the system board assembly from the bottom when removing the system board assembly.
|
Step |
Location (Quantity) |
Length |
|
4 |
System board assembly (2) |
M 2.5 x 6mm |
|
5 |
Base cover (1) |
Special screw |
|
Note: When replacing, make sure you use the correct screw. |
|
