32.147 bytes |
Service Hints & Tips |
Document ID: JBAR-3VAKQY |
IBM PC300GL (Type 6285) - Riser Card Diagram
Applicable to: World-Wide

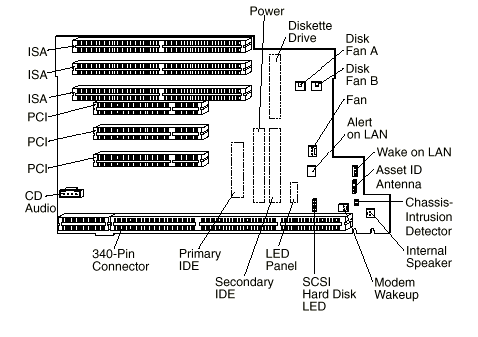

Type 6285 ISA/PCI Riser Card Diagram:
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
09-06-98 | |
|
Last Updated |
11-06-98 | |
|
Revision Date |
09-06-99 | |
|
Brand |
IBM PC | |
|
Product Family |
PC 300GL | |
|
Machine Type |
6285 | |
|
Model |
all | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
Reverse Doclinks |
