Parts Information |
Document ID: COBN-3G5J74 |
Aptiva - 2162 Monitor & power cord (linecord) service parts
Applicable to: World-Wide

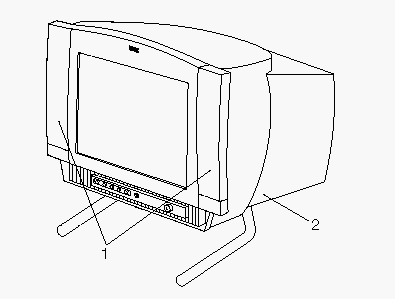

Assembly 6: Monitor and Power Cord (Linecord)
Asm- |
Part |
Units |
Description |
6-1 |
60H7538 |
1 |
Speaker Grill, 15 Inch |
-1 |
60H7555 |
1 |
Speaker Grill, 17 Inch |
-2 |
1 |
Monitor (includes I/O cable) For monitors sold separately from IBM Aptiva system units, see the service information provided with the monitor. 15-Inch Monitor - Type 7095 (13.7-Inch diagonal viewing area) Multimedia Monitor | |
-2 |
60H7534 |
1 |
- .28, 100/240V 50/60Hz, NH/UV (593) |
-2 |
60H9235 |
1 |
- .28, 100/240V 50/60Hz, NH/UV (5C3) |
-2 |
60H7537 |
1 |
- .28, 100/240V 50/60Hz, NH/UV (Japan) (596) |
-2 |
60H9238 |
1 |
- .28, 100/240V 50/60Hz, NH/UV (Japan) (5B6) |
-2 |
60H9239 |
1 |
- .28, 100/240V 50/60Hz, NH/UV (Japan) (5C6) |
-2 |
60H7536 |
1 |
- .28, 100/240V 50/60Hz, EQ/UV |
-2 |
60H9237 |
1 |
- .28, 100/240V 50/60Hz, EQ/UV |
-2 |
60H7535 |
1 |
- .28, 100/240V 50/60Hz, SH/UV |
-2 |
60H9236 |
1 |
- .28, 100/240V 50/60Hz, SH/UV |
17-Inch Monitor - Type 7097 | |||
-2 |
60H7551 |
1 |
- .28, 100/240V 50/60Hz, NH/UV (593) |
-2 |
60H9254 |
1 |
- .28, 100/240V 50/60Hz, NH/UV (5C3) |
-2 |
60H7554 |
1 |
- .28, 100/240V 50/60Hz, NH/UV (Japan) (596) |
-2 |
60H9257 |
1 |
- .28, 100/240V 50/60Hz, NH/UV (Japan) (5B6) |
-2 |
60H9258 |
1 |
- .28, 100/240V 50/60Hz, NH/UV (Japan) (5C6) |
-2 |
60H9256 |
1 |
- .28, 100/240V 50/60Hz, EQ/UV |
-2 |
60H9255 |
1 |
- .28, 100/240V 50/60Hz, SH/UV |
-NS |
60H7570 |
1 |
Swivel 15 Inch |
-NS |
60H7571 |
1 |
Swivel 17 Inch |
Power Cord (linecord) for monitor and system unit | |||
- |
13F9978 |
1 |
- Belgium (Dutch) |
- |
13F9978 |
1 |
- Belgium (French) |
- |
93F2366 |
1 |
- Brazil |
- |
93F2364 |
1 |
- Canada (English) |
- |
93F2364 |
1 |
- Canada (French) |
- |
13F9996 |
1 |
- Denmark |
- |
13F9978 |
1 |
- Finland |
- |
13F9978 |
1 |
- France |
- |
13F9978 |
1 |
- Germany |
- |
14F0068 |
1 |
- Italy |
- |
93F2366 |
1 |
- Latin America (Spanish) |
- |
13F9978 |
1 |
- Netherlands |
- |
13F9978 |
1 |
- Norway |
- |
13F9978 |
1 |
- Portugal |
- |
13F9978 |
1 |
- Spain |
- |
13F9978 |
1 |
- Sweden |
- |
14F0050 |
1 |
- Switzerland (French) |
- |
14F0050 |
1 |
- Switzerland (German) |
- |
14F0032 |
1 |
- UK/Ireland |
- |
93F2364 |
1 |
- U.S. |
-NS |
76H1583 |
1 |
Monitor Mounting Screws |
