TP 765 - 1140 Video Card

25.599 bytes

Service Hints & Tips

Document ID: RJJR-3PGU4U

TP 765 - 1140 Video Card

Applicable to: World-Wide

1140 Video Card
Diskette Drive or CD-ROM Drive (1020)
Battery Pack (1030)
Hard Disk Drive (1040)
Top Cover (1060)
Keyboard Unit (1070)
LCD Unit (1080)
Rear IR (1090)
System Board Assembly (1110)
Upper Shield (1120)
External FDD Connector (1130)
Note: Steps 4 and 5 are 765D-unique.

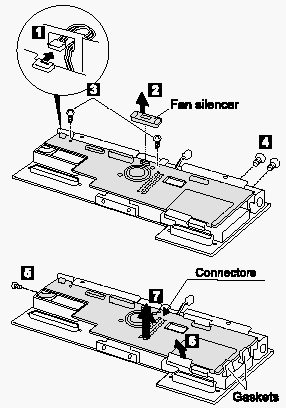

When replacing: do not cover the gaskets with the video card. For the Model 765D, remove the video cable.

Step

Size (quantity)

Memo (torque)

3

M2.5 x 4 mm (2)

Nylon coating (4 kgcm)

4

M2 x 4 mm (2)

(2.5 kgcm)

5

M2.6 x 5 mm (1)

(3 kgcm)

Note: Do not reuse a screw you removed. Use a new screw and tighten the screw to the torque specification shown.
