Service Hints & Tips |
Document ID: RMIE-3G6BPX |
Aptiva - 2136 Hard Drive & Jumper Settings
Applicable to: World-Wide

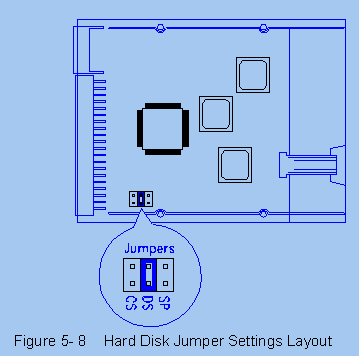

Hard Disk Drive Jumper Settings
The configuration of the following four jumpers controls the driveÆs mode of operation:
CS û Cable Select
DS û Drive Select
SP û Slave Present
|
CS |
DS |
SP |
DESCRIPTION |
|
Off |
On |
-- |
Drive configured as a Master. |
|
Off |
Off |
-- |
Drive configured as a Slave. |
|
