Service Hints & Tips |
Document ID: LWIK-3XPH9T |
TP 380Z - 1040 Keyboard Unit
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

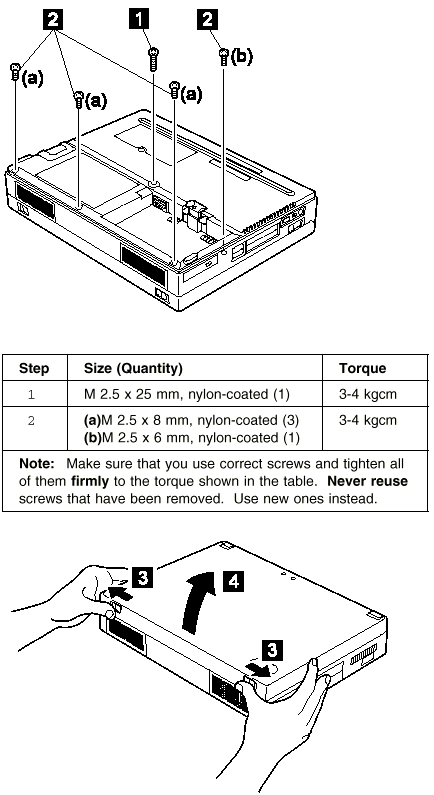

Battery Pack (1020)

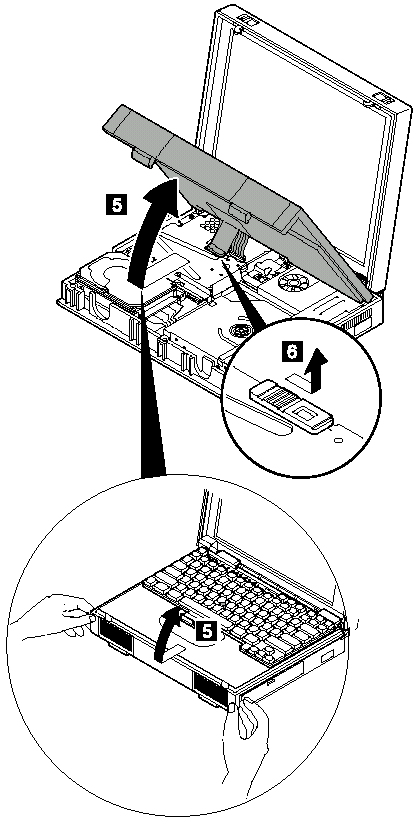

Note: In order not to damage the connectors, pull the keyboard assembly toward you a little in step 5, and then go to step 6.
|
