Parts Information

Document ID: GSMH-3DLCXS

TP SelectaDock II - Parts List

Applicable to: World-Wide

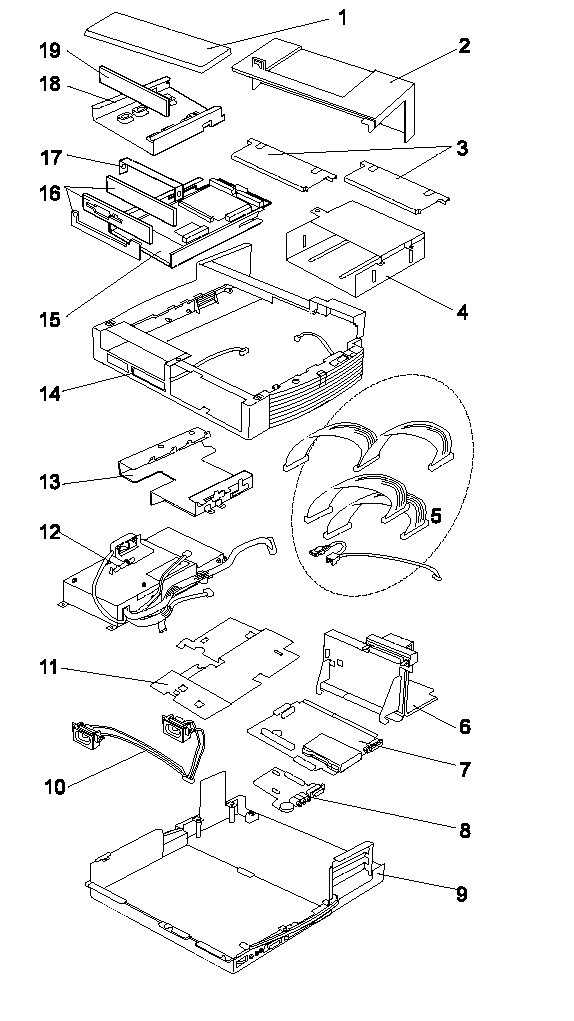

Parts List:

1	Connector cover	73H7450
2	Rear cover	39H7441
3	Bezel	(See Upper cover group)
4	Half-height bay frame	82H6729
5	Cable group	73H7453
6	Riser card	39H7442
7	Main card assembly	39H7443
8	Audio card	39H7444
9	Base cover	39H7439
10	Speaker assembly	39H7446
11	Shield cover	(See Main card assembly)
12	Power supply	(See Power supply group)
13	Bracket	(See Power supply group)
14	Upper cover	(See Upper cover group)
15	UltraBay tray	(See UltraBay group)
16	Blank bezel FDD bezel CD-ROM bezel	(See Upper cover group)
17	Frame	(See UltraBay group)
18	Device tray	82H6728
19	Blank bezel	(See Upper cover group)
	Upper Cover Group (Includes the following:) Bezel Upper Cover Indicator	39H7440
	Power Supply group (include the following:) Power Supply Bracket	39H7438
	Ultrabay group (include the following:) Ultrabay tray Blank Bezel Frame	82H6727
	Miscellaneous kit	39H7447
	SelectaDock Base Model I	73H8594

Options:

Bracket and bezel	84G1291
Option diskette	73H9454
Shelf	84G3631
Tape drive kit	84G1290
Tray cover	84G3632

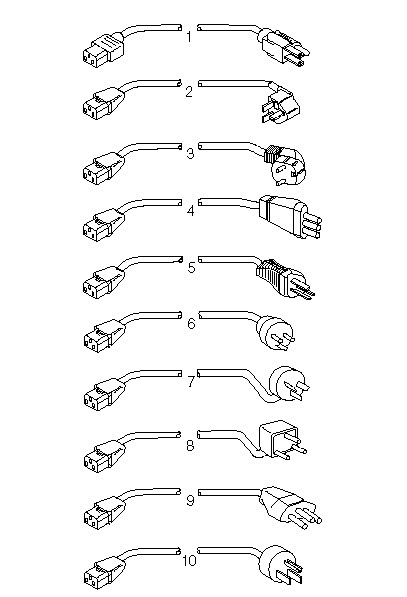

Power Cords:

Warning:
Use the power cord certified for your country.

1	Colombia, U.S., Venezuela	13F9959
	Japan, 2-pin	6454377
	Japan, 3-pin	65F0031
2	Hong Kong, Singapore, U.K.	14F0033
3	France, Germany, Spain	13F9979
4	Italy	14F0069
5	Australia, New Zealand	13F9940
6	Denmark	13F9997
7	Israel	14F0087
8	Bangladesh, Pakistan, Sri Lanka, South Africa	14F0015
9	Switzerland	14F0051
10	Thailand	1838574

	Search Keywords
	Document Category	Hardware Maintenance Information
	Date Created	23-01-97
	Last Updated	25-08-98
	Revision Date	21-08-99
	Brand	IBM ThinkPad
	Product Family	ThinkPad Docking Stations
	Machine Type	3547
	Model	Various
	TypeModel
	Retain Tip (if applicable)	N/A
