Service Hints & Tips |
Document ID: GSMH-3GGJ5X |
Aptiva - 2161 Removals and replacements - Lithium battery
Applicable to: World-Wide
2080 - Lithium Battery
Adapter cards (2035) if applicable
Riser card (2045)

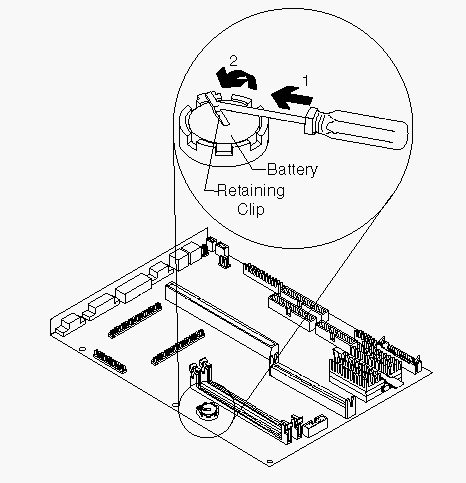

Insert the tip of a screwdriver (1 ) under the clip and raise the clip (2 ) carefully to remove the battery.
Attention: Be careful when removing the battery. If the retaining clip is broken, the system board must be
replaced.
Note: Run the Setup Utility after installing a battery.
Figure 4-15. Lithium Battery
Safety Notice 2:
The lithium battery can cause a fire, explosion, or severe burn. Do not recharge it, remove its polarized
connector, disassemble it, heat it above 100o C (212o F), incinerate it, or expose its cell contents to water.
Dispose of the battery as required by local ordinances or regulations. Use only the battery in the
appropriate parts listing. Use of an incorrect battery can result in ignition or explosion of the battery.
|
