Parts Information

Document ID: BMOE-42KL57

TP 380Z - LCD FRU Parts list

Applicable to: World-Wide

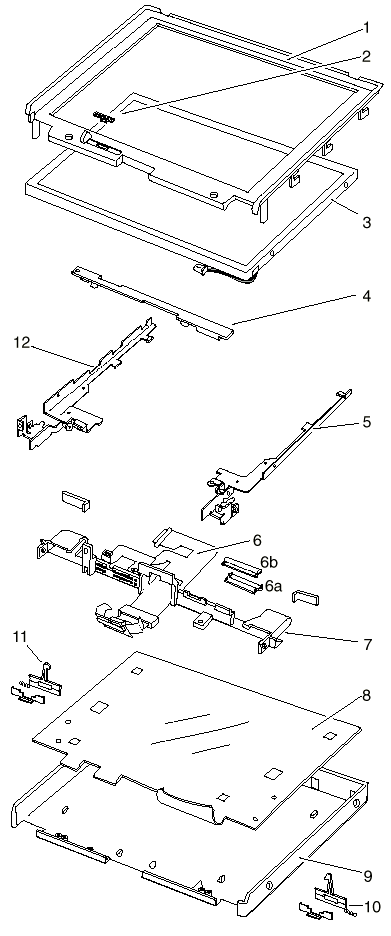

LCD Assembly

Ref. No.	FRU Name	FRU No.
1	Front Cover (included in LCD Cover Kit)
2	Brightness Control Lever (included in LCD Misc. Parts Kit)
3	LCD Panel	05K9377
4	LCD Inverter Card	05K3472
5	Right Hinge (included Hinge Kit)
6	LCD Cable Assembly	05K2765
a	Cable Bush-Front
b	Cable Bush-Rear
7	Hinge Holder (included in LCD Cover Kit)
8	Insulation Sheet (included in LCD Misc. Parts Kit)
9	LCD Cover (included in LCD Cover Kit)
10	Right Latch (included in LCD Misc. Parts Kit)
11	Left Latch (included in LCD Misc. Parts Kit)
12	Left Hinge (included in Hinge Kit)
NS	LCD Cover Kit includes:	05K5500
	Front Cover (Ref.No.1)
	Hinge Holder (Ref.No.7)
	LCD Cover (Ref.No.9)
	Logo (Front, Rear)
	Hinge Cap
	Screw Cap
NS	Hinge Kit includes:	05K5502
	Right Hinge (Ref.No.6)
	Left Hinge (Ref.No.14)
	Screw Cap
NS	LCD Misc. Parts Kit includes:	05K5503
	LCD Cable Holder (Ref.No.2 on page 88)
	Brightness Control Knob (Ref.No.2)
	Insulation Sheet (Ref.No.8)
	Right Latch, Spring, Holder (Ref.No.10)
	Left Latch, Spring, Holder (Ref.No.11)
	Screw Cap

NS: Not Shown
