TP 765 - Location (Rear View)
Applicable to: World-Wide

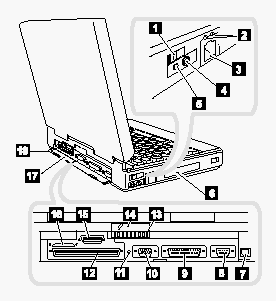

Locations - Rear View
|
1. |
Power switch |
|
2. |
Video in/out ports (model-unique) |
|
3. |
Modem/fax port |
|
4. |
Microphone/line-in jack |
|
5. |
Headphone jack |
|
6. |
Option cover |
|
7. |
Power jack |
|
8. |
Serial connector |
|
9. |
Parallel connector |
|
10. |
External display connector |
|
11. |
Power shutdown switch |
|
12. |
System expansion connector |
|
13. |
Air duct |
|
14. |
Rear infrared port |
|
15. |
External diskette drive connector (Model-unique) |
|
16. |
MIDI/joystick port (Model-unique) |
|
17. |
Connector door |
|
18. |
Rear door |
|
