Service Hints & Tips |
Document ID: PSMS-43VKHQ |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
TP 600 - Rocking base when placed on a flat surface
Applicable to: World-Wide
SYMPTOM:
The TP 600 rocks when operating on a flat surface.
SOLUTION:

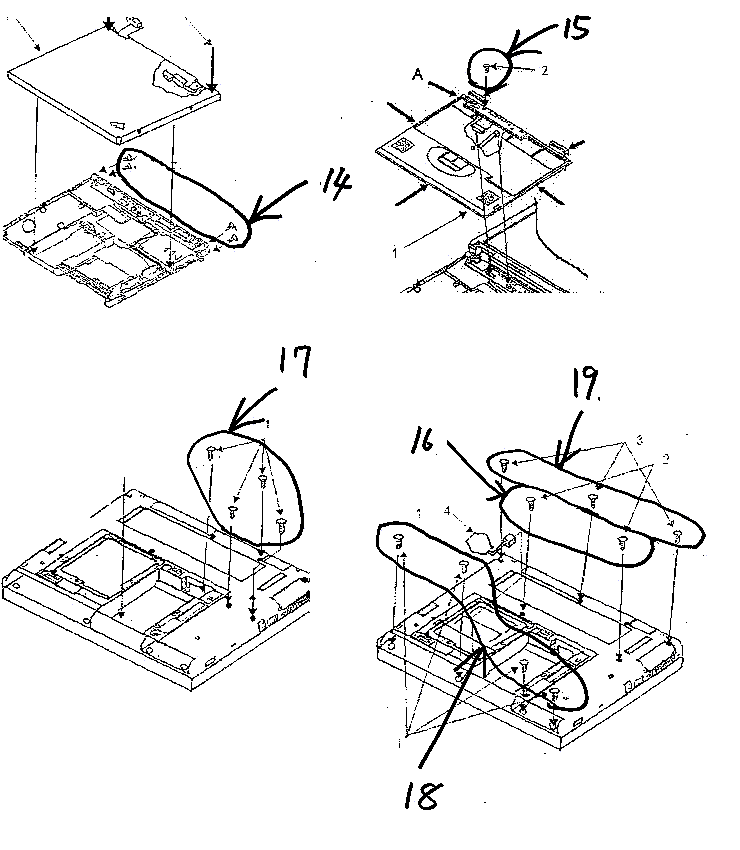

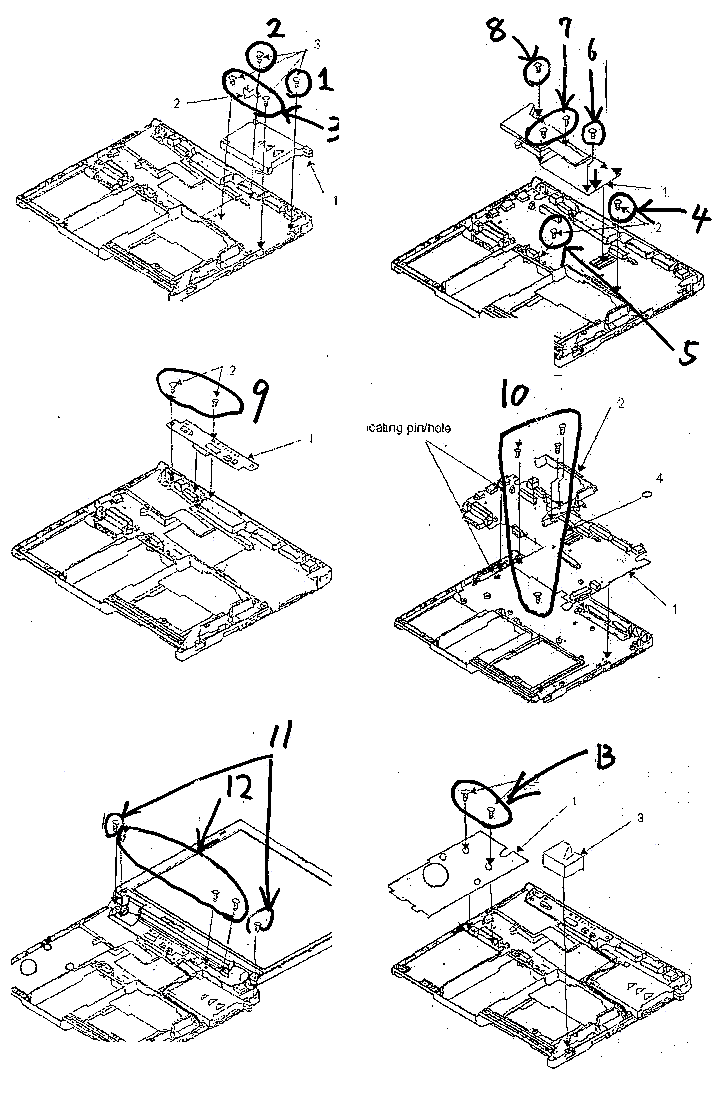

If the space between surface and any foot is more than 0.4mm, the rocking will be caused by the sequence used to assemble the base. Please see below for work instructions.
ADDITIONAL INFORMATION:
The specifications to which the plastic base is produced is 0.4mm. This means a space of up to 0.4mm is allowed between the (flat) operating surface and any of the RHS feet.
|
Search Keywords |
| |
|
Hint Category |
General Information | |
|
Date Created |
06-01-99 | |
|
Last Updated |
19-01-99 | |
|
Revision Date |
19-01-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 600, ThinkPad 600E | |
|
Machine Type |
2645, 2646 | |
|
Model |
Various | |
|
TypeModel |
| |
|
