PCServer704 - Diagrams (EMI Shield/Filler Panels)
Applicable to: World-Wide

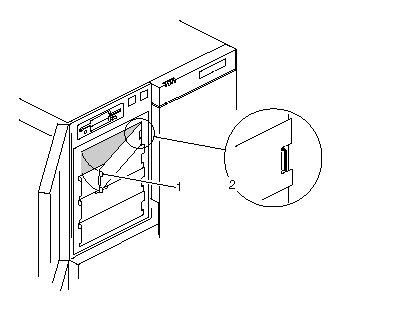

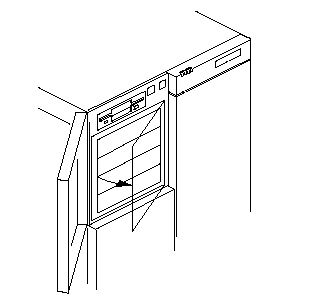

EMI Shield and Filler Panels (5.25-Inch Drive Bays)
|
Note | |
|
System EMI integrity and cooling are both protected by having drives installed in the bays or filler panels and EMI shields covering the bays. When drives are installed in the 5.25-inch drive bays, the filler panels and EMI shields should be saved in case the drives are later removed. |

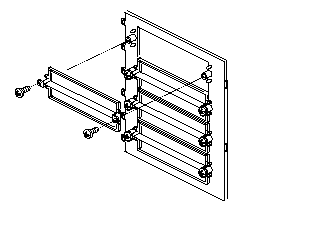

Filler Panel Frame
Filler Panel
|
