Netfinity 7000 - UltraSCSI Ports
Applicable to: World-Wide
UltraSCSI Ports: The server has two UltraSCSI bus-master controllers on the system board. Each controller supports up to 15 SCSI devices. You can use the 68-pin, SCSI connectors for these controllers to expand the capabilities of the server by attaching different types of SCSI devices, such as drives or printers.

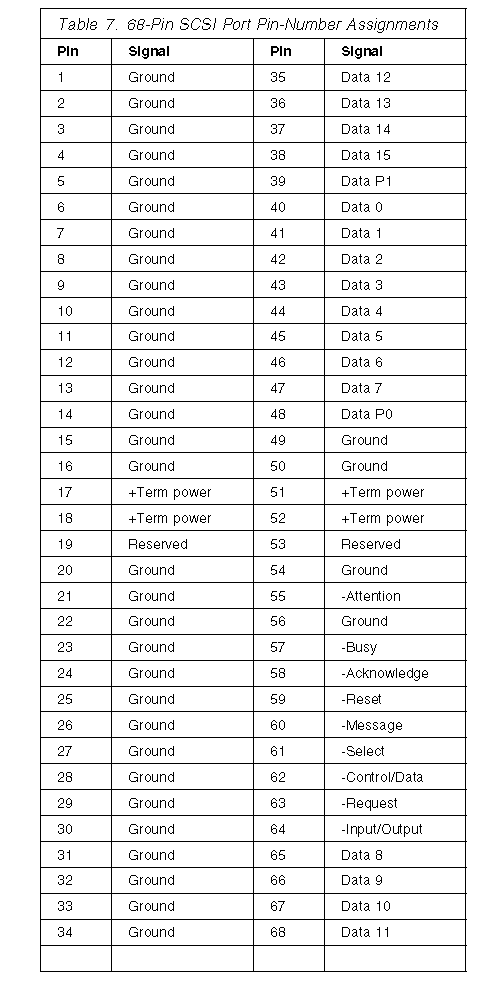

Table 7 shows the pin-number assignments for the 68-pin SCSI connectors.
|
