Service Hints & Tips |
Document ID: BMOE-42RQJG |
TP 390,1720 - Hard Drive Default Configuration
Applicable to: World-Wide
This document contains information on the two standard drives for the TP 390. The 4.3G and 3.2G hard drives.
4.3GB Drive

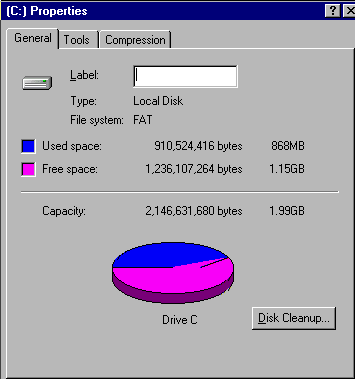

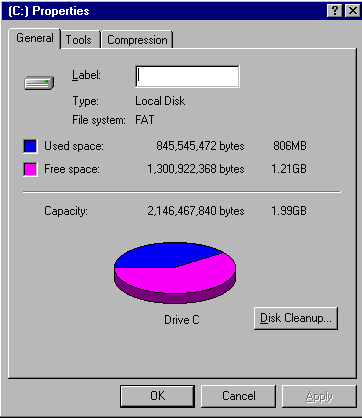

Drive C:

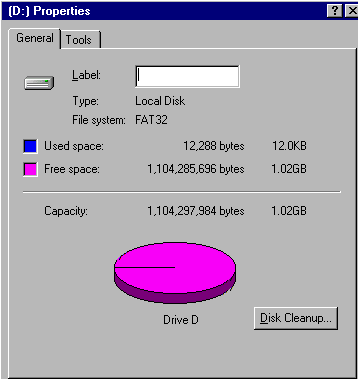

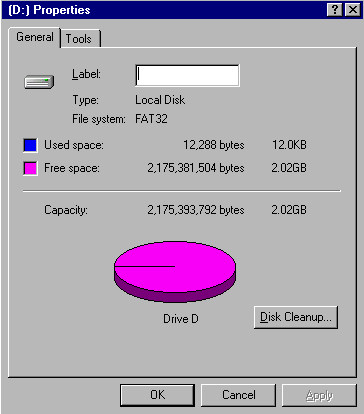

Drive D:
4.3G Default BIOS Settings
IDE Primary Master [4327MB]
Type: [Auto]
Cylinders: [ 8944]
Heads: [ 15]
Sectors: [63]
Maximum Capacity: 4327MB
Multi-Sector Transfers [16 Sectors]
LBA Mode Control: [Enabled]
32 Bit I/O: [Disabled]
Transfer Mode: [Fast PIO 4]
Ultra DMA Mode: [Mode 2]
3.2GB Drive
Drive C:
Drive D:
3.2G Default BIOS Settings
IDE Primary Master [3253MB]
Type: [Auto]
Cylinders: [ 6304]
Heads: [ 16]
Sectors: [63]
Maximum Capacity: 3253MB
Multi-Sector Transfers [16 Sectors]
LBA Mode Control: [Enabled]
32 Bit I/O: [Disabled]
Transfer Mode: [Fast PIO 4]
Ultra DMA Mode: [Mode 2]
|
