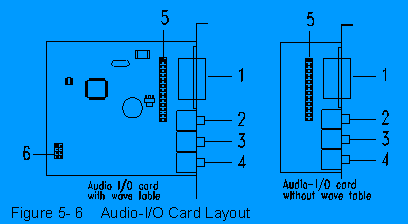

Aptiva - 2136 Audio card layout & functions
Applicable to: World-Wide
Audio-I/O Card Connector Functions
|
No. |
Location |
Function |
Connector toà |
|
1 |
CN1 |
Game / Midi port |
Joystick |
|
2 |
PH3 |
Speaker-out port |
Speaker |
|
3 |
PH2 |
Line-in port |
Sound resource |
|
4 |
PH1 |
Microphone-in port |
Microphone |
|
5 |
CN2 |
Audio I/O cable interface |
System board CN4 |
|
6 |
CN3 |
Wave table signal interface |
System board CN10 |
|
