Product Information |
Document ID: DDSE-452N9J |

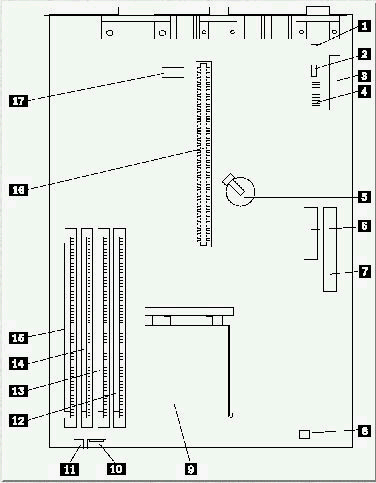

PC Server 315 - System Board
Applicable to: World-Wide
1) Auxiliary power connector
2) CMOS clear (password) jumper
3) Diskette drive connector
4) Switches for microprocessor speeds, diskette write protection, and serial port B
5) Battery
6) 3.3 V ac power connector
7) Main power connector
8) Secondary fan connector
9) Microprocessor
10) Power LED connector
11) First fan connector
12) System memory connector 4 (MEM4)
13) System memory connector 3 (MEM3)
14) System memory connector 2 (MEM2)
15) System memory connector 1 (MEM1)
16) Riser card connector
17) Serial B port
Switch Settings
ATTENTION:
If the microprocessor bus-to-core ratio is incorrect, system-board components will overheat and component damage might occur. Be sure that microprocessor switch settings on the microprocessor switch are set properly according to the speed of the microprocessor.
There are eight switch settings on the microprocessor switch. The switch settings have the following meanings:
|
SWITCH NUMBER |
PURPOSE |
|
1 |
Core ratio |
|
2 |
Core ratio |
|
3 |
Core ratio |
|
4 |
Core ratio |
|
5 |
System bus speed |
|
6 |
System bus speed |
|
7 |
Serial B port |
|
8 |
Diskette Drive |
MICROPROCESSOR
PASSWORD JUMPER

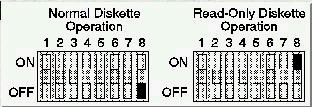

DISKETTE WRITE-PROTECT
NOTE
This switch does not affect the ability to read information from a diskette.

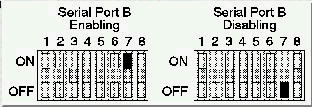

SERIAL B PORT/INFRARED PORT
|
