Service Hints & Tips |
Document ID: BMOE-423NUQ |
TP 1400 - TFT LCD FRU Parts List (12.1")
Applicable to: World-Wide

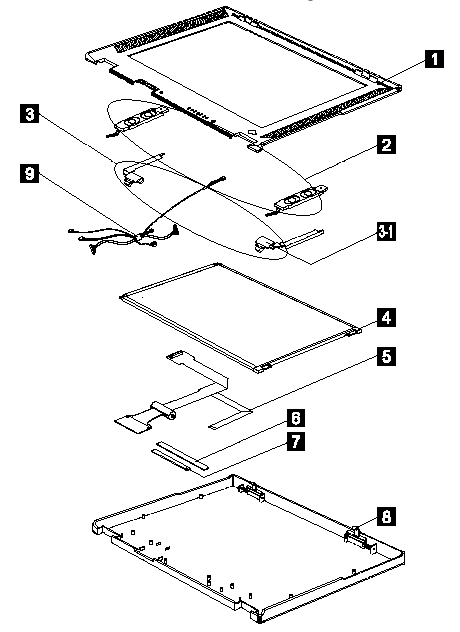

LCD FRU (TFT) - 12.1-Inch TFT
|
No. |
Description |
FRU |
Qty. |
|
1 |
LCD BEZEL Assembly 12.1" |
05K5674 |
1 |
|
2 |
SPEAKER ASM (R,L) |
05K2827 |
1 |
|
3 |
HINGE (R,L) |
05K5669 |
1 |
|
3-1 |
HINGE COVER (R,L) |
05K5949 |
1 |
|
4 |
12.1" TFT LCD |
05K9383 |
1 |
|
5 |
FPC 12.1" ASSY |
05K2795 |
1 |
|
6 |
LCD INVERTER 12.1" |
10L1151 |
1 |
|
7 |
LED BD |
10L1168 |
1 |
|
8 |
LCD REAR COVER Assembly 12.1" TFT |
05K5672 |
1 |
|
9 |
Cable Assembly |
05K2798 |
1 |
|
LG/IBM Logo kit |
05K6044 |
1 |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
09-11-98 | |
|
Last Updated |
19-11-98 | |
|
Revision Date |
19-11-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad i Series 1400 | |
|
Machine Type |
2611 | |
|
Model |
Various | |
|
