Service Hints & Tips

Document ID: DETR-45EL2L

Aptiva - 2164 Removals and replacements - System board

Applicable to: World-Wide

• Remove all adapter cards.

• Disconnect all cables connected to the system board.

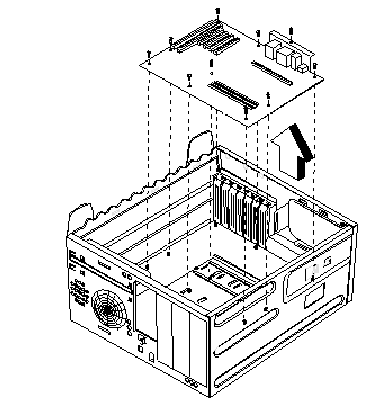

• Remove the screws securing the system board to the chassis.

• Lift the system board to remove from chasis.

• Remove memory (DIMM) if applicable.

• Remove processor.
