TP 765D/L - 1200 PCMCIA Slot Assembly

27.308 bytes

Service Hints & Tips

Document ID: LWIK-3PMMF9

TP 765D/L - 1200 PCMCIA Slot Assembly

Applicable to: World-Wide

1200 PCMCIA Slot Assembly
Diskette Drive or CD-ROM Drive (1020)
Battery Pack (1030)
Hard Disk Drive (1040)
Top Cover (1060)
Keyboard Unit (1070)
LCD Unit (1080)
Rear IR (1090)
System Board Assembly (1110)
Upper Shield (1120)
External FDD Connector (1130)
Video Card (1140)
DC/DC Card and Module Jack (1160)
DSP Card (1170)
Lower Shield (1180)

Notes:

1.

The system unit serial number must be restored when the system board is replaced. To restore the system unit serial number, select the option Set system identification on the maintenance diskette. The EEPROM on the system board contains the vital product data (VPD): the system unit serial number, system board system number, and other computer-unique data.

Note: Do not power off the computer while restoring the VPD.

The system unit serial number label is attached to the base cover.

2.

Before removing and replacing the system board, make sure that a PCMCIA Cards are removed and the eject levers are not sticking out.

3.

Do not pull the PCMCIA slot assembly while removing the system board.

4.

When handling the PCMCIA slot assembly, be careful not to disassemble any part of it. The slot assembly is not solidly fixed when it is removed from the system board or the FRU.

5.

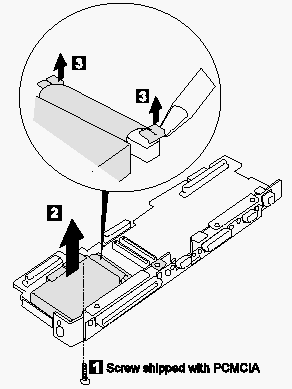

Be sure to unlock both ends of the PCMCIA connector before removing the PCMCIA slot assembly from the system board (2 ).

When replacing:

Move the cable lock upward to insert the cable straight.

Then insert the PCMCIA flexible cable straight and push the locks of the cable; then replace the screws.

Incorrect connection of the PCMCIA flexible cable can cause PCMCIA errors.

Step

Size (quantity)

Memo (torque)

1

M2 x 14 mm (1)

Nylon coating (2.5 kgcm)

Note: Do not reuse the screw that you removed. Use a new screw and tighten the screw to the torque specification shown.

Search Keywords

Hint Category

Hardware Maintenance Information

Date Created

10-12-97

Last Updated

19-08-98

Revision Date

18-08-99

Brand

IBM ThinkPad

Product Family

ThinkPad 765L, ThinkPad 765D

Machine Type

9546, 9547

Model

Various

TypeModel

Retain Tip (if applicable)
