Aptiva - 2162 Power supply cable connector specifications
Applicable to: World-Wide
Power Supply Cable Connector Specifications
Refer to the following figures when checking for voltages on power supply cable connectors.
When checking voltages, the power supply fan must be running. To power-on the power supply without
using the on/off switch, use a screwdriver or other tool to connect pins 2 and 3 on connector J30 (with the
switch cable plug disconnected from the connector on the system board).
Figure 5-5. Connector J30 on System Board

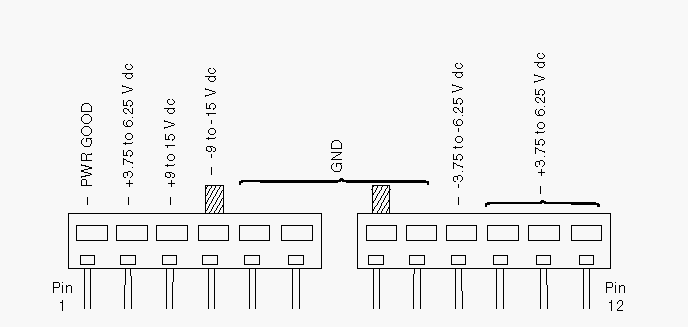

Figure 5-6. System Board Power Supply Connectors (J8 Bottom View)

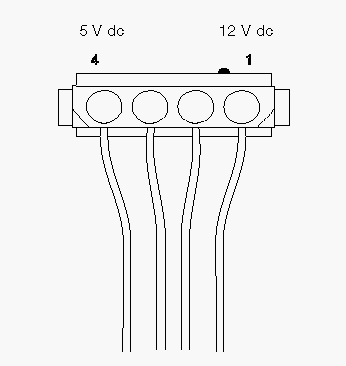

Figure 5-7. Hard Drive or CD-ROM Power Cable Connector
Figure 5-8. 3.5-In. Diskette Drive and Host Card Power Cable Connector
|
