Aptiva - 2140/2142 System board layout (Type A-2)
Applicable to: United States, Canada, Japan, Italy, United Kingdom, France, Germany, China, Hong Kong, Denmark, Spain, Netherlands, Sweden, Norway, Australia, Finland
System Board Layout - Type A-2

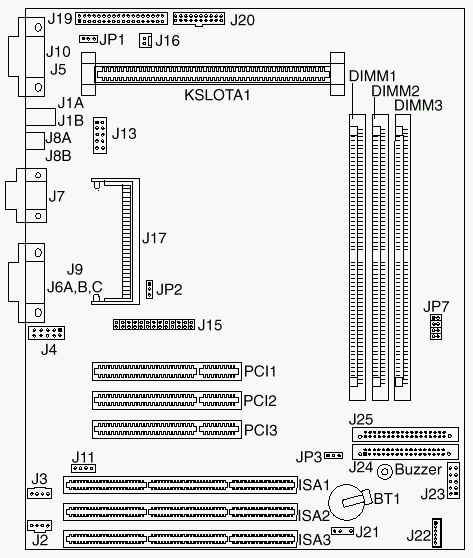

Figure 5-3 System Baord Type A-2
System Board Locations - Type A-2
|
BT1 |
Battery |
|
DIMM1 |
DIMM connector (Bank 1) |
|
DIMM2 |
DIMM connector (Bank 2) |
|
DIMM3 |
DIMM connector (Bank 3) |
|
ISA1 |
ISA 1 connector |
|
ISA2 |
ISA 2 connector |
|
ISA3 |
ISA 3 connector |
|
J1A/J1B |
Mouse/Keyboard connector (top=mouse; bottom=keyboard) |
|
J2 |
Modem audio-In connector |
|
J3 |
TV Audio-In connector |
|
J4 |
Audio amplifier connector |
|
J5 |
Serial port connector (bottom connector) |
|
J6A/B/C |
Audio out/in, mic |
|
J7 |
Monitor connector |
|
J8A/B |
USB connector (top=USB1, bottom=USB0) |
|
J9 |
MIDI/Joystick connector (top) |
|
J10 |
Parallel connector (top) |
|
J11 |
CD/DVD-ROM audio in connector |
|
J13 |
TV out connector |
|
J14 |
AC-3 connector |
|
J15 |
Video feature connector |
|
J16 |
Fan connector |
|
J17 |
SO-DIMM socket (video upgrade) |
|
J19 |
Diskette drive connector |
|
J20 |
Power connector |
|
J21 |
Buzzer, on board (Enable: 1-2, Disable: 2-3) |
|
J22 |
Power switch, Power LED, Hard disk LED connector |
|
J23 |
Media Console connector (Type 2142 only) |
|
J24 |
Secondary IDE connector |
|
J25 |
Primary IDE connector |
|
JP1 |
Diskette Write (Enable: 1-2, Disable: 2-3) |
|
JP2 |
On-Board Video Enable (Normal: 2-3, Disable: 1-2) |
|
JP3 |
CMOS, Power-on Password Reset (Normal: 2-3, Clear: 1-2) |
|
JP7 |
Processor Bus Factor |
|
PCI1 |
PCI 1 connector |
|
PCI2 |
PCI 2 connector |
|
PCI3 |
PCI 3 connector |
|
KSLOTA1 |
Processor |
|
