Parts Information |
Document ID: COBN-3GGBQD |
Aptiva - 2161 CD-ROM drive, sound & modem cards service parts
Applicable to: World-Wide

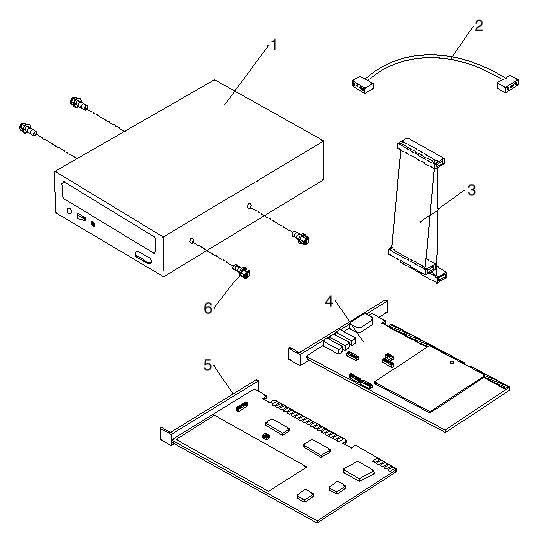

Assembly 4: CD-ROM Drive, Sound and Modem Cards
|
Asm- |
Part |
Units |
Description |
|
4-1 |
76H6101 |
1 |
CD-ROM Drive (16X CAV) |
|
-2 |
10H2924 |
1 |
CD-ROM Drive Audio Cable (Model C9S) |
|
-3 |
60G2254 |
1 |
CD-ROM/Hard Disk Cable |
|
-NS |
41H7819 |
1 |
Wake Up On Ring Cable |
|
-4 |
55H7240 |
1 |
Sound card |
|
-5 |
76H6947 |
1 |
Modem Card, 36.6 Kbps (Belgium) |
|
-5 |
76H6247 |
1 |
Modem Card, 36.6 Kbps (France) |
|
-5 |
76H6253 |
1 |
Modem Card, 36.6 Kbps (Germany) |
|
-5 |
76H6249 |
1 |
Modem Card, 36.6 Kbps (Italy) |
|
-5 |
76H1760 |
1 |
Modem Card, 36.6 Kbps (Japan) |
|
-5 |
76H6949 |
1 |
Modem Card, 36.6 Kbps (Portugal) |
|
-5 |
76H6945 |
1 |
Modem Card, 36.6 Kbps (Spain) |
|
-5 |
76H6251 |
1 |
Modem Card, 36.6 Kbps (Switzerland, Austria) |
|
-5 |
76H1758 |
1 |
Modem Card, 36.6 Kbps (UK, NL, SWE, DK, NOR, FIN, IRE) |
|
-5 |
76H1762 |
1 |
Modem Card, 36.6 Kbps (US/LA/BR) |
|
-NS |
76H1617 |
1 |
Modem/Audio Cable |
|
-NS |
41H7820 |
1 |
Modem Splitter |
|
-NS |
43G3398 |
1 |
Modem Cable (EMEA) |
|
-NS |
60H6045 |
1 |
Telephone Adapter (Austria) |
|
-NS |
60H6046 |
1 |
Telephone Adapter (Belgium) |
|
-NS |
60H6047 |
1 |
Telephone Adapter (Denmark) |
|
-NS |
60H6043 |
1 |
Telephone Adapter (Eire) |
|
-NS |
60H6048 |
1 |
Telephone Adapter (Finland) |
|
-NS |
60H6049 |
1 |
Telephone Adapter (France) |
|
-NS |
60H6050 |
1 |
Telephone Adapter (Germany) |
|
-NS |
60H6052 |
1 |
Telephone Adapter (Italy) |
|
-NS |
60H6053 |
1 |
Telephone Adapter (Netherlands) |
|
-NS |
60H6048 |
1 |
Telephone Adapter (Norway) |
|
-NS |
60H6047 |
1 |
Telephone Adapter (Portugal) |
|
-NS |
60H6043 |
1 |
Telephone Adapter (Spain) |
|
-NS |
60H6054 |
1 |
Telephone Adapter (Sweden) |
|
-NS |
60H6055 |
1 |
Telephone Adapter (Switzerland) |
|
-NS |
60H6051 |
1 |
Telephone Adapter (UK) |
|
-NS |
75H9292 |
1 |
Internal Speaker Cable |
|
-NS |
07H1686 |
1 |
DC Power Cable, Speaker |
|
-NS |
07H1627 |
2 |
Speaker, Model 10 |
|
-NS |
76H1684 |
2 |
Speaker Grill, Model 10 |
|
-NS |
07H1629 |
2 |
Speaker, Model 20 |
|
-NS |
76H1686 |
2 |
Speaker Grill, Model 20 |
|
-NS |
76H4764 |
2 |
Speaker, Sub-Woofer, Model 30 |
|
-NS |
76H4762 |
2 |
Speaker, Sub-Woofer, Model 31, EMEA 230V |
|
-NS |
04H6905 |
2 |
Sub-Woofer A.C. Power Cable (UK) |
|
-NS |
04H6906 |
2 |
Sub-Woofer A.C. Power Cable (Europe) |
|
-NS |
76H15721 |
1 |
Joystick |
|
-NS |
60G2272 |
1 |
Microphone |
|
-NS |
76H6978 |
1 |
Head Set |
|
-NS |
12J3988 |
1 |
Y adapter (Head Set) |
|
-8 |
93F0041 |
1 |
Packet (Mounting Screws) |
|
