Parts Information |
Document ID: GSMH-3EFGCU |
PCServer330 - Internal Drive Bays (Non-Hot-Swap Servers)
Applicable to: World-Wide

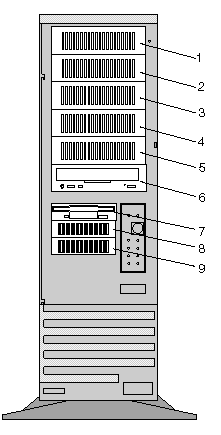

Internal Drive Bays (Non-Hot-Swap Servers):
Maximum Allowable Drive Sizes (Non-Hot-Swap Models):
|
Bay |
Drive Width |
Drive Type |
Maximum Drive Height |
|
1-5 |
3.5-inch or 5.25-inch |
Hard disk, removable media See Note |
41.3 mm (1.6 inches) |
|
6 |
5.25-inch |
CD-ROM |
41.3 mm (1.6 inches) |
|
7 |
3.5-inch |
Diskette drive |
41.3 mm (1.6 inches) |
|
8-9 |
3.5-inch |
Hard disk, diskette, or 1/4-inch SCSI tape backup drive |
25.4 mm (1 inch) |
Note:
Removable media include 3.5-inch diskettes, optical discs, and tapes.
Required Hardware for Drive Options:
|
Option |
Required hardware |
|
3.5-inch drive rewritable optical disc drive |
Special mounting bracket |
|
Internal drives, 3.5-inch |
8-bit or 16-bit drive |
|
16-bit devices (bays 1-5) |
16-bit cable (comes with the system) |
|
8-bit devices |
8-to-16 bit converter |
|
