Service Hints & Tips

Document ID: BMOE-42EHZL

TP 390,390E,1720 - IMM Lower Heatsink ASM Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

• Battery ASM
• Hard Disk Drive
• Combo Bay
• Keyboard
• LED Board
• Upper Heatsink
• CPU Board
• LCD Panel ASM
• Upper Cover ASM

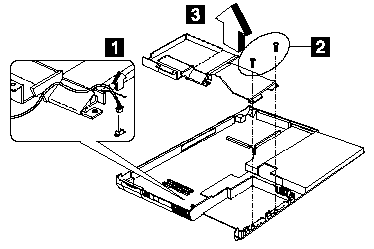

To remove the IMM lower heatsink ASM:

1. Remove the 2 screws securing the IMM lower heatsink ASM. Lift the IMM lower heatsink ASM up to remove.

2. Disconnect the power cable from the connector.

Step	Size (Quantity)	Head & Color	Torque
2	M2.5 x 6L (2)	Flat head, black	1.6 kgf-cm

Note: Make sure you use the correct screw for replacement.

	Search Keywords
	Hint Category	Hardware Installation/Configuration
	Date Created	20-11-98
	Last Updated	23-03-99
	Revision Date	23-03-2000
	Brand	IBM ThinkPad
	Product Family	ThinkPad 390, ThinkPad i Series 172x
	Machine Type	2626, 2627
	Model	Various
