TP 380,385 - LCD inverter card removal diagram
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
1140 LCD Inverter Card
Battery Pack (1010)
DIMM Cover (1020)
Keyboard Unit (1030)
CD-ROM/FDD Assembly (1040)
LCD Unit (1070)
LCD Front Cover (1120)
LCD Panel (1130)

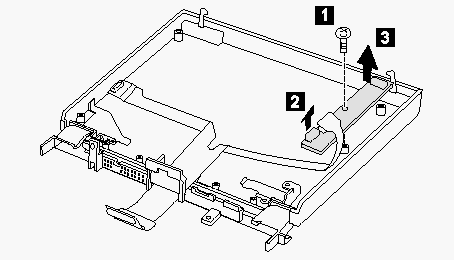

DSTN LCD
|
Step |
Location (Quantity) |
Length |
|
1 |
LCD inverter card (1) |
M 2.5 x 6mm |
|
Note: When replacing, make sure you use the correct screw. |

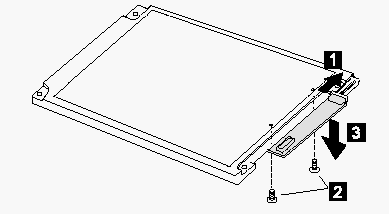

TFT LCD (Type 2 only)
|
Step |
Location (Quantity) |
Length |
|
2 |
LCD inverter card (2) |
M 2.0 x 3.7mm |
|
Note: When replacing, make sure you use the correct screw. |
|
