Service Hints & Tips |
Document ID: PMYS-3LLQBU |

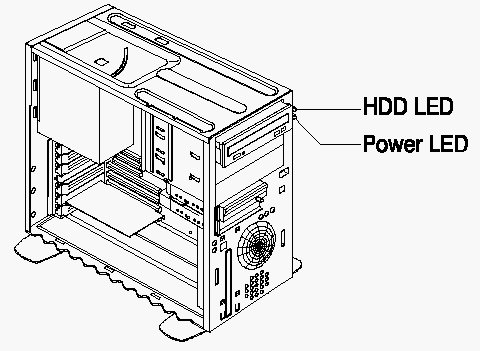

Aptiva - 2137 Indicator LED and cable
Applicable to: World-Wide
1. Push in on the indicator LED and remove from the rear.
2. Disconnect the LED and cable from the system board.
NOTE: When reinstalling the LED assembly, please be note, the EMI core should be approximately 20mm from lower cable tie.
|
