Service Hints & Tips

Document ID: GCOR-38ZL4W

Aptiva - TV Card Installation (2134)

Applicable to: World-Wide

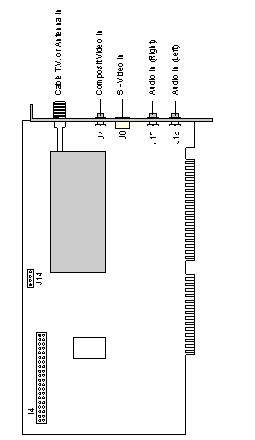

TV card:-

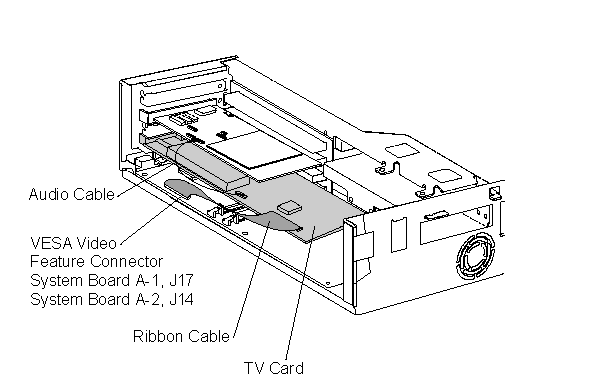

TV Card Installation 2134:

TV Card Software Control
Task Control Panel
- Use the Task Control Panel to switch the Factory-Installed TV card between TV, Capture, and Teletex modes.

TV Tuner Panel
- Use the TV Tuner panel to control audio volume and muting.

Display Panel
- Use the mouse, the Control panel buttons, or the CTRL key to size the Display panel. The display can be changed to these preset sizes:

Table 1-2. TV card display size

160x120 pixels 240x180 pixels 320x240 pixels 640x480 pixels Toggle between full screen and current size

CTRL+1 CTRL+2 CTRL+3 CTRL+5 CTRL+F CTRL+F

	Search Keywords
	Hint Category	Hardware Installation/Configuration, Video
	Date Created	27-08-96
	Last Updated	17-12-98
	Revision Date	17-12-99
	Brand	IBM Aptiva
	Product Family	Aptiva
	Machine Type	2134
	Model
	TypeModel
	Retain Tip (if applicable)
	Reverse Doclinks and Admin Purposes
