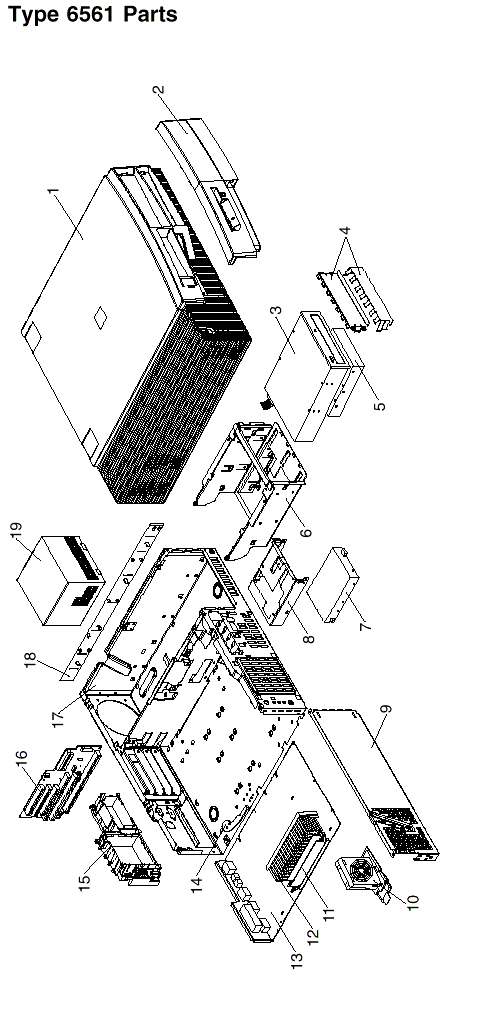

IBM PC300GL (Type 6561) - Parts diagram/FRU listing
Applicable to: World-Wide
Parts Listing:
|
Index |
System (Type 6561) |
FRU No. |
|
1 |
Cover Assembly |
01K1607 |
|
2 |
Bezel Kit |
76H7339 |
|
|
Name Plate |
01K1611 |
|
3 |
CD-ROM Drive/32X |
02K3412 |
|
3 |
CD-ROM Drive/32X (Models 29J, 42X, 46J, 47J) |
02K1115 |
|
|
Audio Cable, CD-ROM |
75H9219 |
|
|
IDE Cable, CD-ROM (1-drop) |
03K9724 |
|
|
IDE Cable, CD-ROM (2-drop) |
12J3432 |
|
4 |
EMC Shield Kit |
76H7338 |
|
5 |
2.1 GB EIDE Hard Disk Drive |
12J3141 |
|
5 |
2.5 GB EIDE Hard Disk Drive |
75H8978 |
|
5 |
4.2 GB EIDE Hard Disk Drive |
12J3143 |
|
|
IDE Cable |
76H7341 |
|
6 |
Hard Disk/CD-ROM Cage |
76H7331 |
|
7 |
3.5-Inch 1.44 MB Diskette Drive |
75H9550 |
|
7 |
3.5-Inch 1.44 MB Diskette Drive-Japan |
75H9552 |
|
|
Diskette Drive Cable |
76H7340 |
|
8 |
3.5-Inch Diskette Bracket |
76H7330 |
|
9 |
Side Bracket |
76H7329 |
|
10 |
Fan Assembly 80 mm |
10L5501 |
|
10 |
Fan Assembly 80 mm (233, 266 MHz. Proc. only) |
03K9541 |
|
11 |
Memory - 16 MB DIMM, Non-Parity |
01K1104 |
|
11 |
Memory - 32 MB DIMM, Non-Parity |
01K1105 |
|
11 |
Memory - 32 MB DIMM, ECC |
01K1125 |
|
12 |
Processor Pentium II 233 MHz. |
01K2165 |
|
12 |
Processor Pentium II 266 MHz. |
01K2166 |
|
12 |
Intel Celeron Processor 266 MHz., no cache |
01K4295 |
|
12 |
Processor Pentium II 233 MHz. ECC |
01K2168 |
|
12 |
Processor Pentium II 266 MHz. ECC |
01K2169 |
|
12 |
Processor Pentium II 300 MHz. ECC |
01K4291 |
|
|
Goal Posts - Processor support |
02K2856 |
|
13 |
System Board (no processor, memory -- with guide rails and shield) |
01K2145 |
|
|
Guide Rail - system board |
01K1610 |
|
|
Lithium Battery |
33F8354 |
|
|
Jumper Kit |
93F0067 |
|
14 |
Latch and Screw - system board |
01K1612 |
|
15 |
Power Switch/LED Assembly Cage |
03K9542 |
|
16 |
Riser Card |
61H0499 |
|
|
Front Riser Support Guide |
02K2766 |
|
17 |
Chassis Assembly |
01K1608 |
|
|
Keylock Assembly |
76H7336 |
|
|
Foot (4) |
93F2386 |
|
18 |
Side Panel |
76H7333 |
|
19 |
145 Watt Power Supply |
01K9846 |
|
19 |
145 Watt Power Supply - Japan |
01K9848 |
|
|
Audio Adapter |
01K2154 |
|
|
Ethernet Adapter |
08L2566 |
|
|
Cable, Wake On Ring |
08L2559 |
|
