PC Server 325 - Input/Output connectors locations

43.938 bytes

Service Hints & Tips

Document ID: GSMH-3EXGPZ

PC Server 325 - Input/Output connectors locations

Applicable to: World-Wide

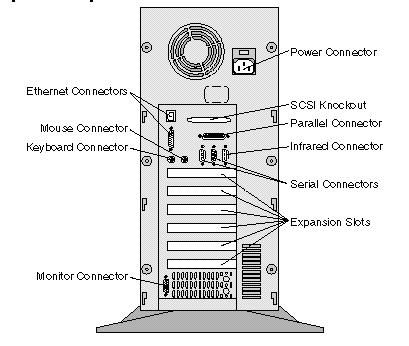

Input/Output Connectors:

Ethernet Connectors:

There are two Ethernet connectors: a DB-15 and an RJ-45. The DB-15 attachment unit interface (AUI) connector is for attachment of external 10BASE2, 10BASE5, or 10BASE-F medium attachment unit (MAU). The RJ-45 connector is for attachment to the
integrated 10BASE-T (twisted-pair) transceiver.
Note:
If the server is shipped with an Ethernet interface cable, it must be attached to the RJ-45 connector on the server, and the cable on the 10BASE-T device.

Mouse Connector:

This is where the mouse cable connects to the server. This connector sometimes is called an auxiliary-device or pointing-device port.

Keyboard Connector:

The cable from the keyboard connects here.

Monitor Connector:

The monitor signal cable connects here.

SCSI Connector:

Attach external SCSI devices here.

Parallel Connector:

One 25-pin parallel port is provided. This is where the signal cable for a parallel printer, or other parallel device, connects to the server.

Infrared Connector:

The server has one connector for an infrared (IR) transceiver module option.

Serial Connectors:

Two 9-pin serial connectors, A (COM1) and B (COM2), are provided. The serial signal cable for a modem or other serial device usually connects here. If you are using a 25-pin signal cable, you need a 9-pin to 25-pin adapter cable.

Search Keywords

Hint Category

Hardware Maintenance Information

Date Created

07-03-97

Last Updated

06-08-98

Revision Date

05-08-99

Brand

IBM PC Server

Product Family

PC Server 325

Machine Type

8639

Model

EJ0; ES0; ESV; RD0; RF0; RS0; XD0; XDV; XF0; XFV; XJ0; XS0; XSV; YS0

TypeModel

Retain Tip (if applicable)
