Service Hints & Tips |
Document ID: GSMH-3B4GC3 |
TP 355,360,370,750,755C/CS - Screw Size Chart
Applicable to: World-Wide

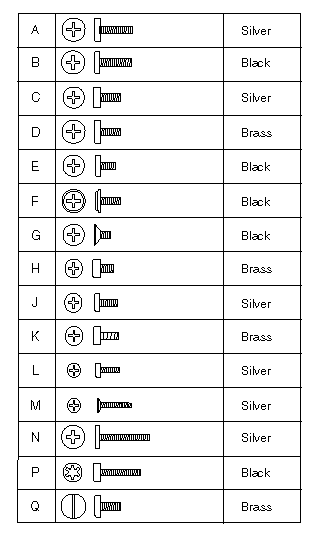

Screw Size Chart:
Use the chart below to match the size and shape of the screws used in the computer you are servicing.

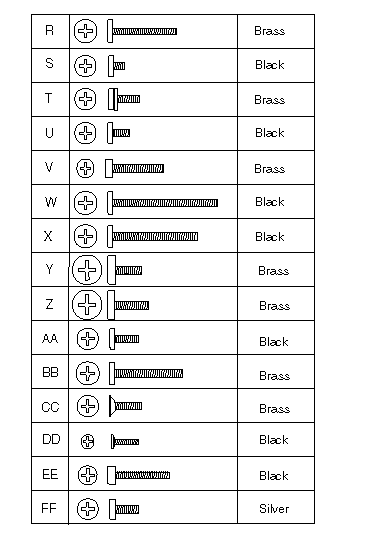

Screw Size Chart (continued):
Use the chart below to match the size and shape of the screws used in the computer you are servicing.

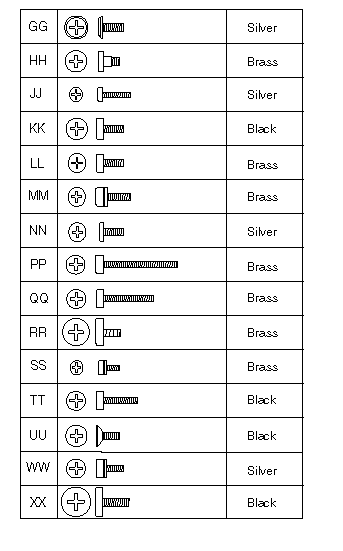

Screw Size Chart (continued):
Use the chart below to match the size and shape of the screws used in the computer you are servicing.
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
04-11-96 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
18-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 355, ThinkPad 360, ThinkPad 370, ThinkPad 750, ThinkPad 755C/CS | |
|
Machine Type |
2620, 9545, 2619 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
N/A | |
|
