Service Hints & Tips

Document ID: LWIK-3XZJLE

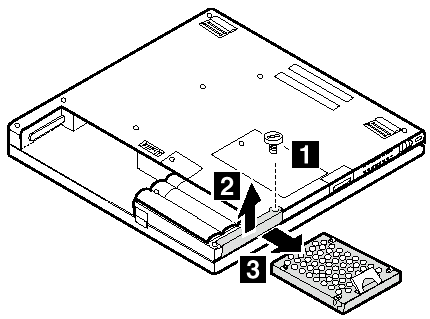

TP 560Z - 1040 Hard Disk Drive

Applicable to: World-Wide

Warning

Do not drop or apply any shock. Do not apply pressure to the cover. Do not touch the connector. The hard disk drive is sensitive. Incorrect handling can cause damage and permanent loss of data on the hard disk. Before removing the hard disk drive, make a backup copy of all the data on the hard disk. Never remove the drive while the system is operating, in suspend mode, or in hibernation mode.

Note:
For 560X, if you are replacing a 4GB hard disk drive, reuse the shield and the tape (P/N 05K4690).
Battery Pack (1030)
