Service Hints & Tips

Document ID: BMOE-425NK3

TP 1400 - Upper Cover (Keyboard Bezel) Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

• Battery Assembly
• Keyboard
• Hard Disk Drive and HDD Heatsink
• CPU Heatsink
• LCD Assembly

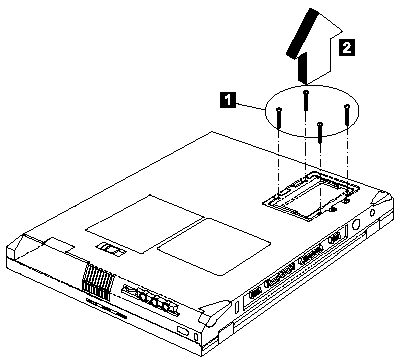

Step	Size (Quantity)	Head & Color	Torque	Memo
1	M2.5 x 13.5L (5)	Pan head, black	2.5 kgf-cm	w/ nylok paste

Note: Make sure you use the correct screw for replacement.

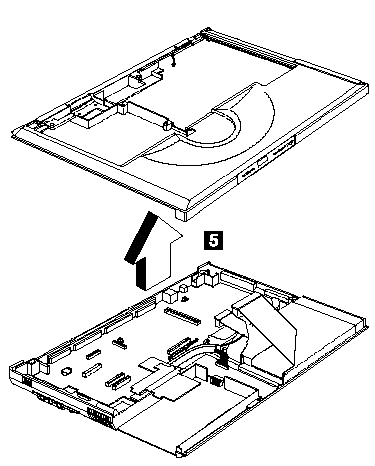

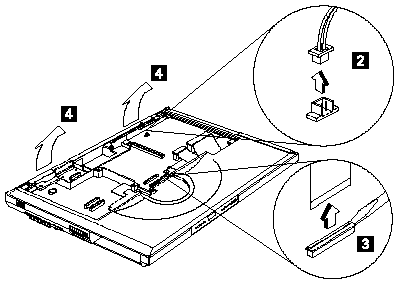

Note: The upper cover has several latches. When removing the upper cover from the base cover, gently release these latches, then raise the side of the upper cover facing the palm rest to remove it. Be careful not to break the latches.

	Search Keywords
	Document Category	Hardware Installation/Configuration, Hardware Maintenance Information
	Date Created	11-11-98
	Last Updated	12-11-98
	Revision Date
	Brand	IBM ThinkPad
	Product Family	ThinkPad i Series 1400
	Machine Type	2611
	Model	Various
	TypeModel
	Retain Tip (if applicable)
	Reverse Doclinks and Admin Purposes
