TP 365X/XD - 1100 Volume Switch/Speaker Assembly
Applicable to: World-Wide

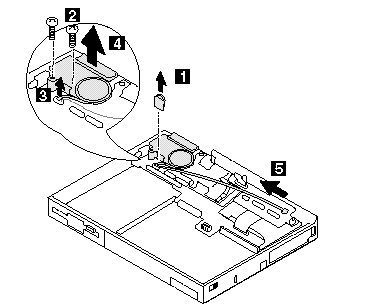

1100 Volume Switch / Speaker Assembly:
Battery Pack (1020)
Insulator Sheet (1025)
Diskette Drive / CD-ROM Drive (1040)
Hard Disk Drive (1050)
Top Cover (1060)
Keyboard Unit (1070)
LCD Assembly (1080)
LCD Panel (1085)
Indicator Card (1090)
|
Step |
Screw Location (Quantity) |
Length |
|
2 |
Speaker Assembly (1) |
M2 x 4 mm |
|
3 |
Speaker Assembly (2) |
M2 x 5 mm |
|
