Parts Information

Document ID: GSMH-3BDEGW

TP 755C/CS - FRU parts listing

Applicable to: World-Wide

Models 755C and 755Cs:

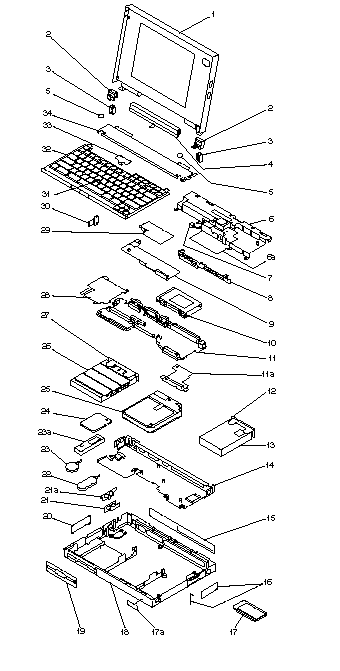

System Unit (755C, 755Cs):

Index

Description

FRU #

1

LCD Assembly (755C)

66G5058

For Japan

84G4316

LCD Assembly (755C)
(This LCD does not have a contrast control.)

84G4337

LCD Assembly (755Cs)

84G4317

To view NEW LCD FRU's

2

Hinge Cover

66G5047

3

Hinge Bracket, Right, Left

66G5057

4

Status Indicator Assembly (755C)

84G4293

Status Indicator Assembly (755Cs)

84G4355

5

Screw Cover

66G5046

6

Speaker Shield Assembly

84G4290

6a

Insulator

84G5705

7

Speaker (Includes speaker holder)

66G3754

8

Interposer Card

66G9242

9

DC/DC Card

84G4329

10

PCMCIA Slot Assembly

66G5121

11

System Boards
(The following do not include PCMCIA slot
assembly, index 10, lower shield, index 14, or processor card, index 11a)

System Board
(For LCD with a contrast control)

84G4287

System Board
(For LCD without a contrast control)

84G5632

11a

Processor Card (25/50 MHz)

59G4056

Processor Card (25/75 MHz)
(Includes hex head screws, nut, and screw cover)

84G4288

12

HDD Removal Strap

66G5122

13

Hard Disk Drive (Includes strap, index 12)

170MB

66G5066

340MB

66G5068

540MB

84G4319

810MB

85G0961

14

Lower Shield

84G4291

15

Rear Connector Cover

66G5050

16

PCMCIA Cover
(Includes bezels and security plate)

66G5053

17

PCMCIA Device

17a

Name Label

66G9228

18

Base Cover Assemblies include coil spring,
insulator, foot, power switch knob, holder, latch buttons

Base Cover Assembly

84G4281

For Benelux

84G4282

For Japan

84G4283

19

Bezel, Diskette Drive

66G5051

20

Cover, Option Bay

66G5052

21

Bezel, Audio Card
(Includes bracket, index 21a)

84G4292

22

Standby Battery

66G3755

For Belgium, Dutch

66G3761

For Switzerland

66G3758

23

Backup Battery

84G2263

23a

Attachment Holder

84G2294

24

IC DRAM Card (See Options)

See below

25

Battery Pack (Nickel Metal Hydride)

66G2820

For Belgium, Dutch

66G2822

For Switzerland

66G2821

For Danish, Sweden, Finland, Norway

66G5063

26

Diskette Drive (4-mode)
(Includes strap, index 27)

66G5060

Diskette Drive (3-mode) (Includes strap, index 27)

84G2269

27

Diskette Drive Removal Strap

66G5123

28

Base Plate

84G2293

29

Audio Card

84G4289

30

Keyboard Lock

66G0031

31

TrackPoint II Cap

click here

32

Keyboard Assembly (See keyboard list)

See below

33

Leaf Spring Plate

66G0041

34

Upper Cover

84G4318



Keyboard:

Arabic

66G0163

Belgian

66G0161

Canadian French

66G0169

Danish

66G0160

Dutch

66G0158

Finnish

66G0157

French

66G0154

German (Black)

66G6402

Greek

66G0167

Hebrew

66G0164

Italian

66G0156

Japanese

66G0171

Latin American

66G0168

Norwegian

66G0162

Portuguese

66G0165

Spanish

66G0159

Swedish

66G0157

Swiss/French

66G0155

Swiss/German

66G0153

Turkish

66G0166

U.K. English

66G0151

U.S. English

66G0150


Common/Option Parts List:
Miscellaneous Parts

AC Adapter (35 W, 3-pin)

85G1952

For Japan (2-pin)

85G6669

AC Adapter (40 W, 3-pin)

49G2196

For Japan (2-pin)

49G2197

AC Adapter (40 W, 3-pin, U.S. only)
(not for 370C)

84G4320

Foot (right or left)

84G4326

Miscellaneous Parts Kit
(Includes DC-in holder, spacer, warning label)

For Models 750x

66G5039

For Models 355x, 360x, 370C, 755C, 755Cs

84G2254

PC Card Locking Bar

85G8625

Screw Kit
(Includes:
10-2.5 x 4 mm; 10-2.5 x 6 mm
10-2.5 x 8 mm, Flat head
10-2.5 x 8 mm; 10-2.5 x 16 mm
10-hex stud I/O; 10-hex stud bus
2-washer for hex stud bus)

66G5124

IC DRAM. Eject Tape

53G9318


Options:

Notes:
1. When you replace the AC adapter or the Quick Charger witha new one, use the one for the country you are in even if the system is from different country.
2. The warranty for the system unit is not applied to all options.

Audio Cable

66G5180

Car Battery Adapter
(48G9203 label sealed)

49G1148

Car Battery Adapter
(66G9984 label sealed)

84G4359

Diskette Drive Attachment Unit

66G5069

IC DRAM 2MB

07G1414

IC DRAM 4MB

07G1415

IC DRAM 8MB

07G1416

IC DRAM 16MB

66G0094

Microphone

66G7871

PS/2 Miniature Mouse

95F5723

Port Replicator

66G3575

Port Replicator with PCMCIA

66G3574

Quick Charger (3-pin)

66G2815

For Japan (2-pin)

66G2816


Model Unique Options:

755C/CS

DIMM 4MB

84G4323

DIMM 8MB

84G6545

DIMM 16MB

84G4324

DIMM Adapter Card

84G4322

Diskette Drive (4-mode)
Supported in U.S. only.

66G5060


Numeric Keypad:

Belgian

95F5741

Canadian French

95F5466

Danish

95F5467

Dutch

95F5467

French

95F6313

German

95F6314

Greek

95F5467

Hebrew

95F5741

Icelandic

95F5467

Italian

95F6316

Japanese

79F6401

Norwegian

95F5467

Spanish

95F6315

Swedish/Finnish

95F5468

Swiss/French

95F5711

Swiss/German

95F5715

Turkish

95F5467

U.K. English

95F5741

U.S. English

95F5741


Accessories:

Keyboard/Mouse Cable

54G0444


Tools:

Tri-Connector Wrap Plug

72X8546

PC Test Card

35G4703

Screwdriver Kit

95F3598

ThinkPad 750Ce
Hardware Maintenance Diskette
(This diskette is common for all models of ThinkPad.)

82G3891

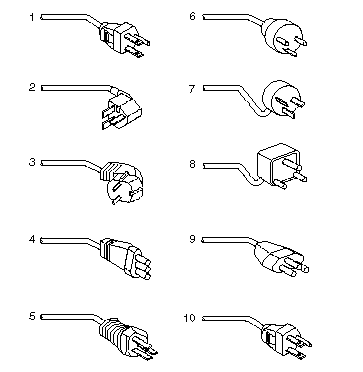

Power Cords:

Warning:
Use the power cord certified for your country.

30/40W

35W

1

Colombia, U.S., Venezuela

13F9959

25H2207

Japan, 2-pin

6454377

85G6665

Japan, 3-pin

65F0031

2

Hong Kong, Singapore, U.K.

14F0033

25H2215

3

France, Germany, Spain

13F9979

25H2209

4

Italy

14F0069

25H2223

5

Australia, New Zealand

13F9940

25H2205

6

Denmark

13F9997

25H2211

7

Israel

14F0087

25H2225

8

Bangladesh, Pakistan,Sri Lanka, South Africa

14F0015

25H22139

9

Switzerland

14F0051

25H2221

10

Thailand

1838574

25H2219


Notes:
- Models 370C, 755C, and 755Cs do not support the 30W AC adapter.
- The 30/40W cord is 6 foot long; the 35W cord is 6 inches.
