Parts Information

Document ID: RWHE-3BTMXQ

9306 Rack Enclosure - System Parts Listing (9306-9QS, 9TS, 9QX, 9TX)

Applicable to: World-Wide

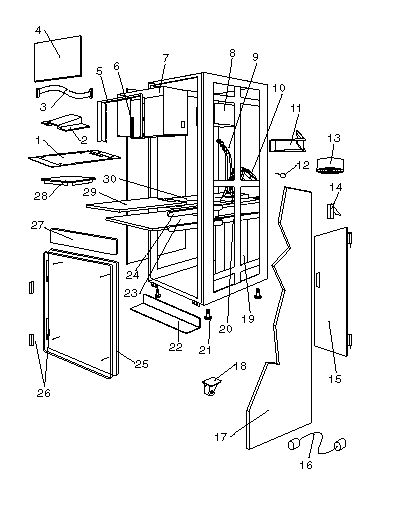

Parts Listing (Type 9306- 19-Inch):

Primary and Expansion Rack Models 9QS, 9TS and 9QX, 9TX:

Index	19-Inch Rack Enclosure (Type 9306)	FRU
1	Adapter Plate Options:
	PS/2 Server 85/95	76H3733
	Model 300	76H3734
	Model 500, 700	76H3735
2	Monitor Stand	07H0061
3	Server Selector Cable	07H0036
4	Blank Bezel (9QX, 9TX Expansion units only)	76H0379
5	Monitor Bezel with button label	76H0378
6	Server Selector Keypad	07H0097
7	Monitor Housing (19-Inch)	76H0377
8	Server Selector Unit Electronics	07H0034
9	Internal Cables (see Cable Kit Shelf Server)	07H0073
10	Cable Management Arm	76H0386
11	Cable Management Arm Single Server Tray	76H0387
12	Pin, Cable Management Arm	07H0089
13	Fan 220 V ac with Power Cord	07H0063
14	Latch, Rear Door	76H0376
15	Rear Door (19-Inch)	76H0373
15	Hinge Set for Rear Door	76H0389
16	External Power Cord:
	Australia	14F1559
	Europe	14F1554
	Israel	14F1561
	Italy	14F1560
	New Zealand	14F1558
	South America, India	14F1557
	U.K./Denmark	14F1555
	USA	14F1553
	External Power Cord Option - 6 Ft.	07H0094
17	Left/Right Side Panel	76H0374
18	Caster	76H3626
19	Power Distribution Unit	07H0424
	250 V Slow Blow	Fuse 0303549
20	Keyboard Slides, (one pair)	07H0038
21	Leveling Foot (Qty. 1)	76H0390
22	Stabilizing Bar	76H0375
23	Keyboard Tray, 19-Inch	76H0381
24	Slide Rails, Server Tray (one pair)	07H0083
24	Slide Rails, Dual Tray (one pair)	76H0383
25	19-inch Front Compartment Door (19-Inch by 26-Inch) Includes Hinge Set and Screws	76H0371
26	Door Hinge Set	76H0372
27	Door Valance (9QX, 9TX, Expansion units only)	76H0380
28	Mouse Table	07H0079
29	Dual Server Tray	76H0382
29	Dual Server Shelf	76H0385
30	Single Server Tray	76H0384
	19-Inch Single Slide Shelf for an Industry Standard 19-Inch Rack.	76H3628
	Cable, SVGA-Video (15 Feet) Option	76H3736
	Monitor Power Cable (connects from monitor to Power Distribution Unit)	07H0075
	Rack Keyboard Cable (connects from Keyboard Drawer to Server Selector Unit)	07H0067
	Rack Mouse Cable (connects from Keyboard Drawer to Server Selector Unit)	07H0069

Rack Enclosure Kits (Type 9306)	FRU
Bolt-Together Kit (19-Inch to 24-Inch, 24-Inch to 19-Inch) - 19-Inch Attachment Bracket (2 each) - Screw 1/4-20 x 1/2 Button Head Socket Cap Allen (8 each) - Screw 1/4-20 x 1-1/4 Socket Cap (4 each) - Flanged Nut 1/4-20 (12 each) - 24-Inch Attachment Bracket (4 each)	76G3627
Cable Kit Shelf Server (12 foot cables) - Monitor Cable - Keyboard Cable - Mouse Cable - Internal Power Cable	07H0073
Miscellaneous Parts Kit - Rack Nut/Holder 10-32 (8 each) - Keeper Nut 8-32 Zinc (8 each) - Keeper Nut 10-32 (6 each) - Screw 6-32 x 5/16 (2 each) - Screw 6-32 x 1/4 Button Head Socket Cap Allen (8 each) - Screw 10-32 x 3/8 Button Head Socket Cap (8 each) - Screw 6-32 x 3/8 Button Head Socket Cap (2 each) - Screw 1/4-20 x 1/2 Button Head Socket Cap (2 each) - Screw 8-32 x 1/4 Button Head Socket Cap Allen (4 each) - Screw 10-32 x 1/4 Button Head Socket Cap (2 each) - Screw 8-32 x 1/4 Button Head Socket Cap (8 each) - Pull-ring, 3-Inch (2 each) - Shoulder Screw 8-32 x 3/8 (2 each) - Standoff, .25 Hex, 6-32 FF, .5-Inch (2 each) - Screw 8-32 x 3/8 Button Head Socket cap (2 each) - Screw 10-24 x 1/4 Button Head Socket Allen (2 each) - Screw 10-24 x 5/16 Button head Socket Allen (2 each) - Keeper Nut 8-32 (2 each) - Nut 8-32 (2 each) - Captive Weld Nut (2 each) - Whiz-Lock Flange Nut 1/4-20 (2 each) - Keeper Nut 10-32 (2 each) - Bumpers (2 each) - Cable Ties (8 each)	07H0057
Server Tray Interlock Kit - Cam (1 each) - Spring (1 each)	07H0091
